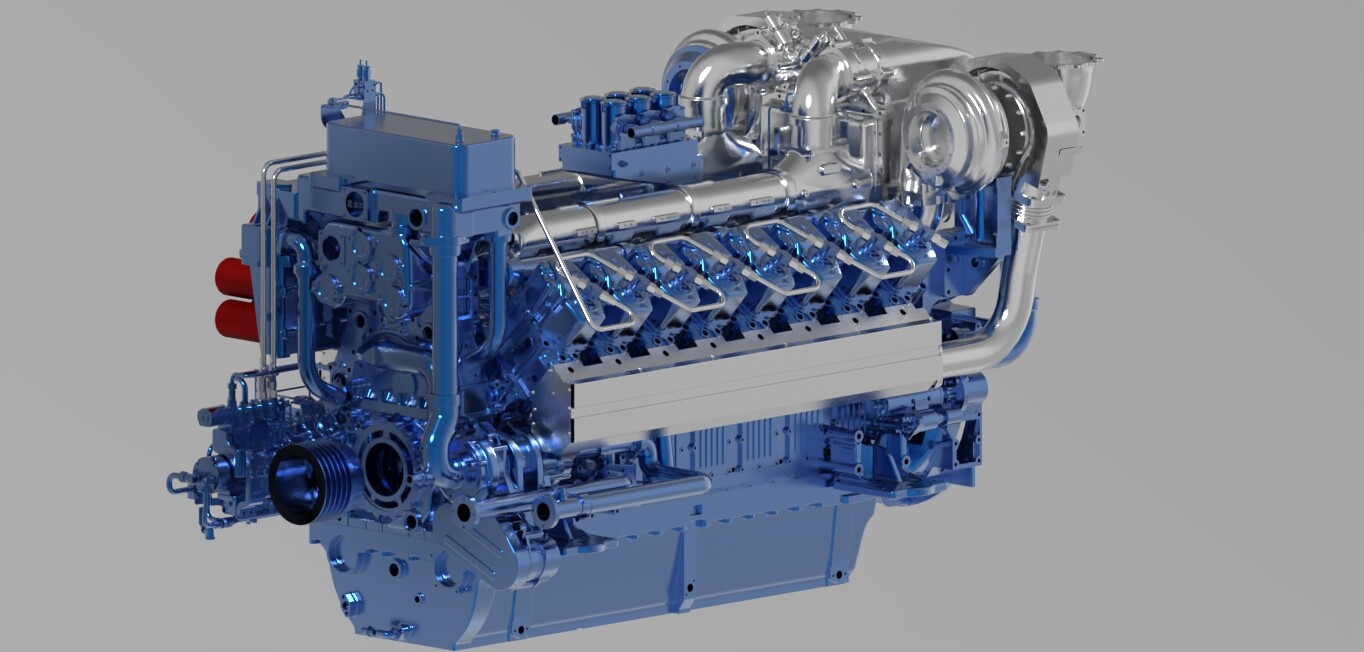

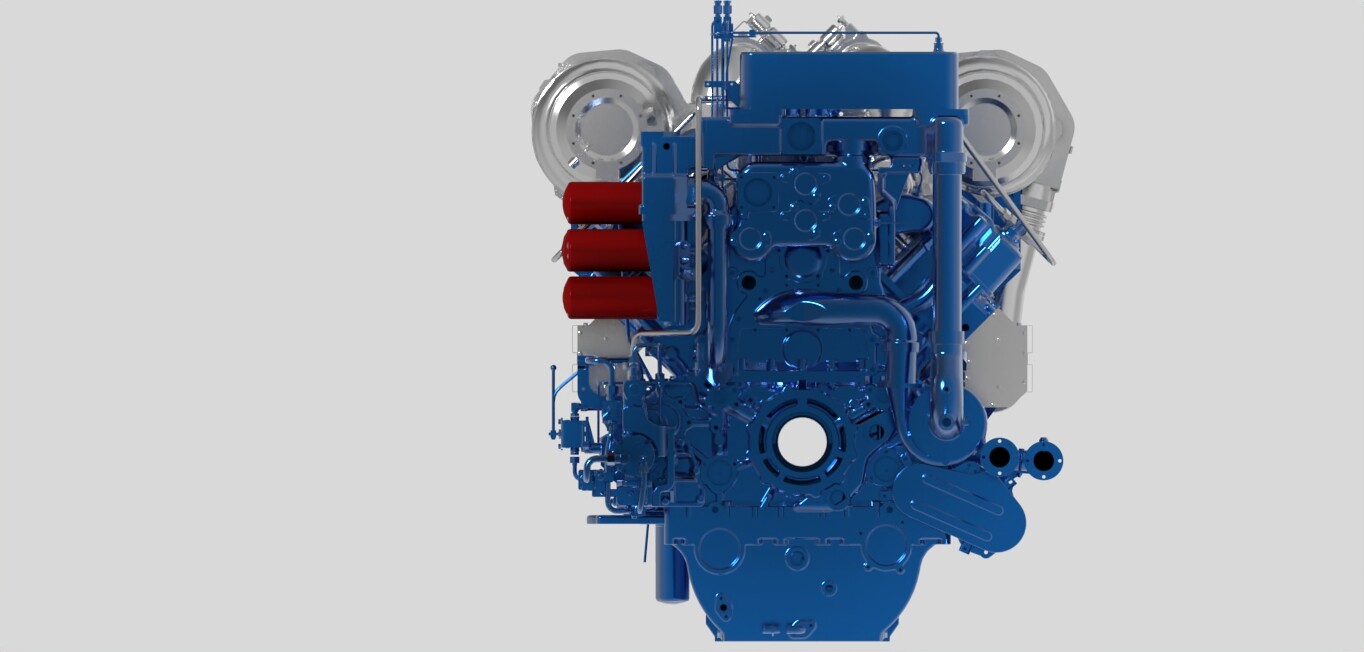

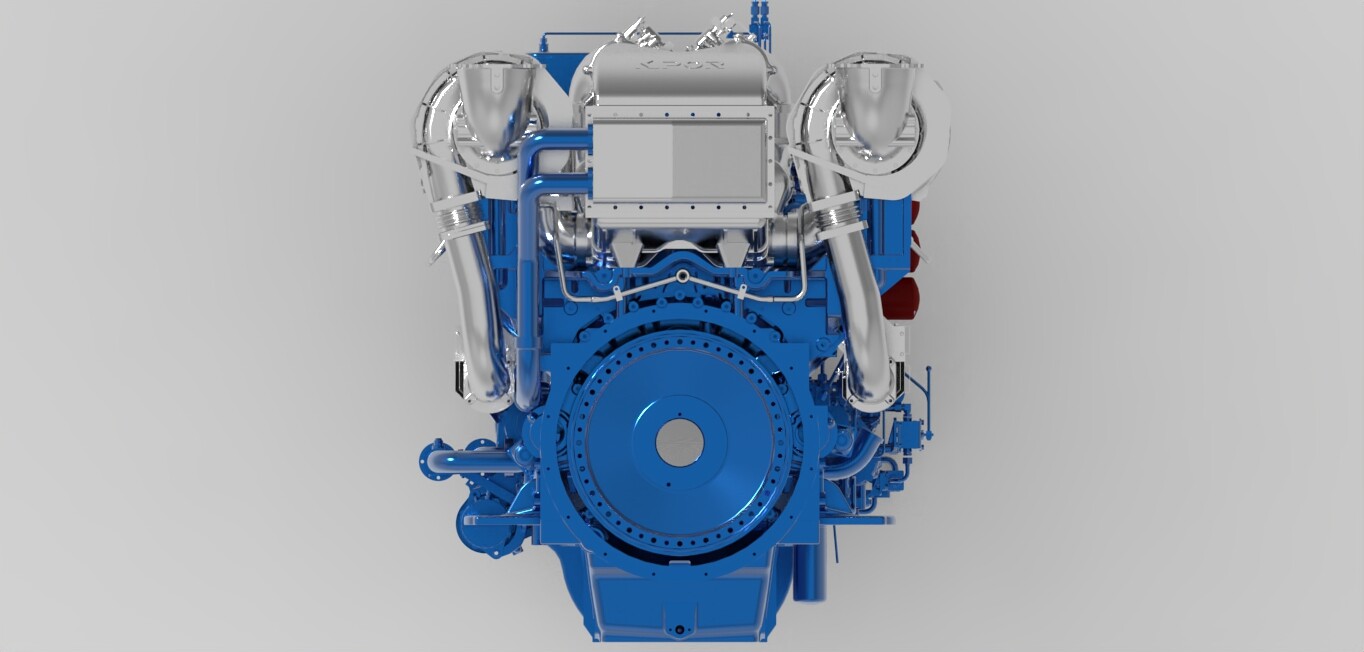

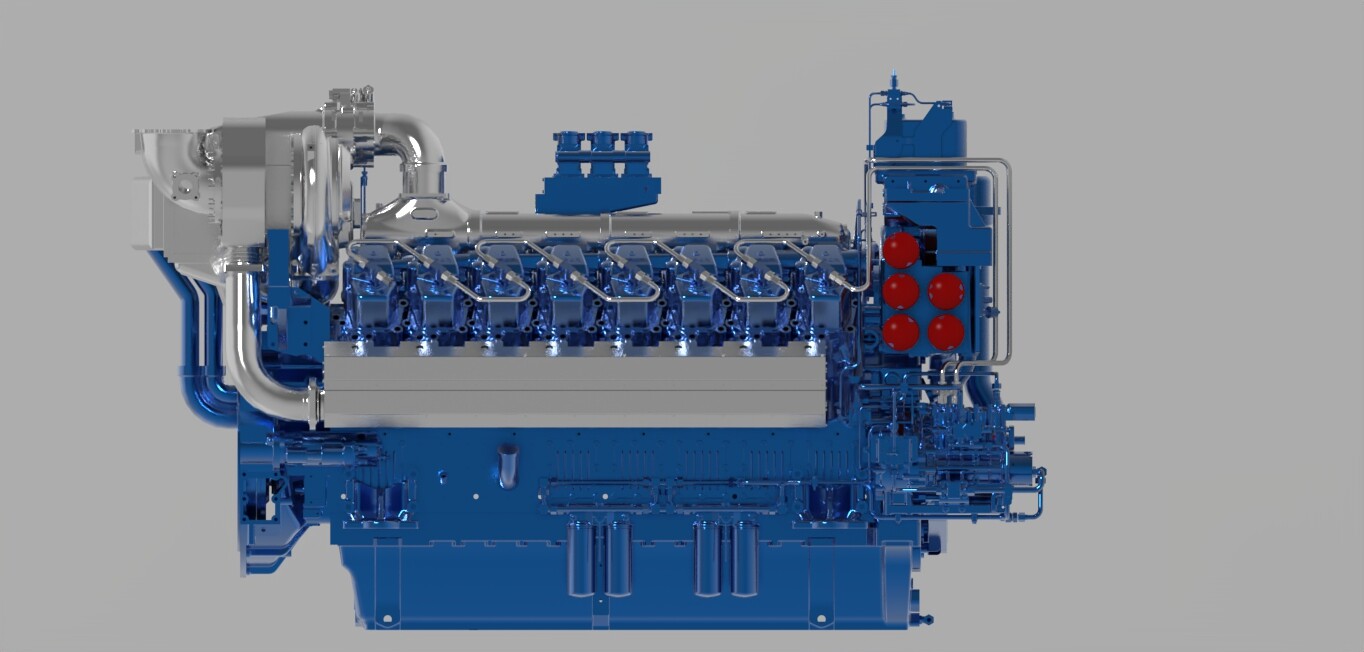

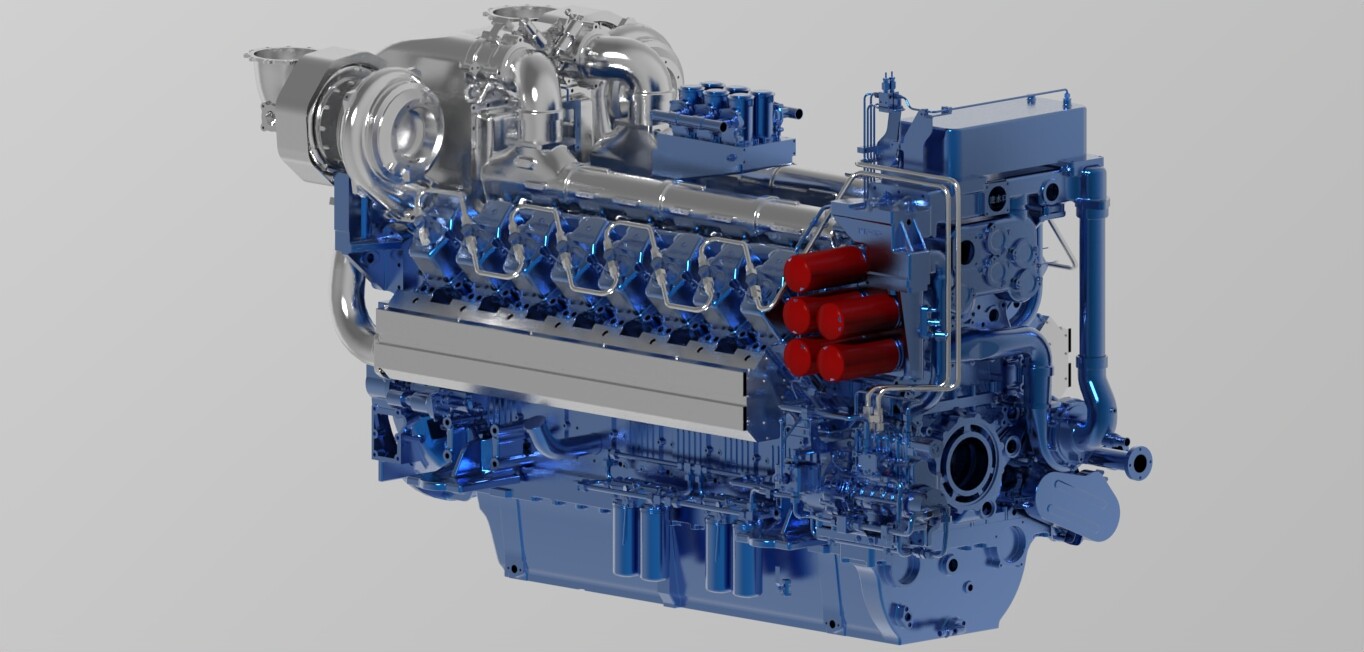

XD16V171ZLCR2350
EPIOR V-Type 16-Cylinder 2350 Diesel Engine Prime Power: 50Hz / 1800kW (60Hz / 2025kW)Standby Power: 50Hz / 1980kW (60Hz / 2228kW).It can be conveniently connected with generators of various brands. With a rated speed of 50Hz / 1500rpm, the engine is suitable for 50Hz power supply applications. It can also meet 60Hz power supply requirements.
Featuring a modular design, high-strength materials, high-pressure common rail technology and an optimized control system, the engine can achieve continuous full-power output from shutdown in an extremely short time, ensuring the normal operation of users' core industries. It is an ideal power solution for emergency power generation and peak load power supply.
Technical Parameters
Engine
Engine Manufacturer
EPIOR
Rated FrequencyHz5060
Prime/Standby PowerKW1800/19802025/2228
Rotation Speedrpm15001800
Engine Type
XD16V171ZLCR
Structure Type
16-cylinder 90° V type
Water-cooled   four-stroke, turbocharged, water-air-intercooled
Bore x Strokemm171×210
DisplacementL77.17
Engine Cooling Water VolumeL204
Lubricating System
Pressure Splash
Lubricant Type
Grade CF-4 or better, SAE15W-40
Lube CapacityL(Max)288~(Min)209
Starting SystemV24V electric start
Engine Fuel Consumptiong/KW.h186
