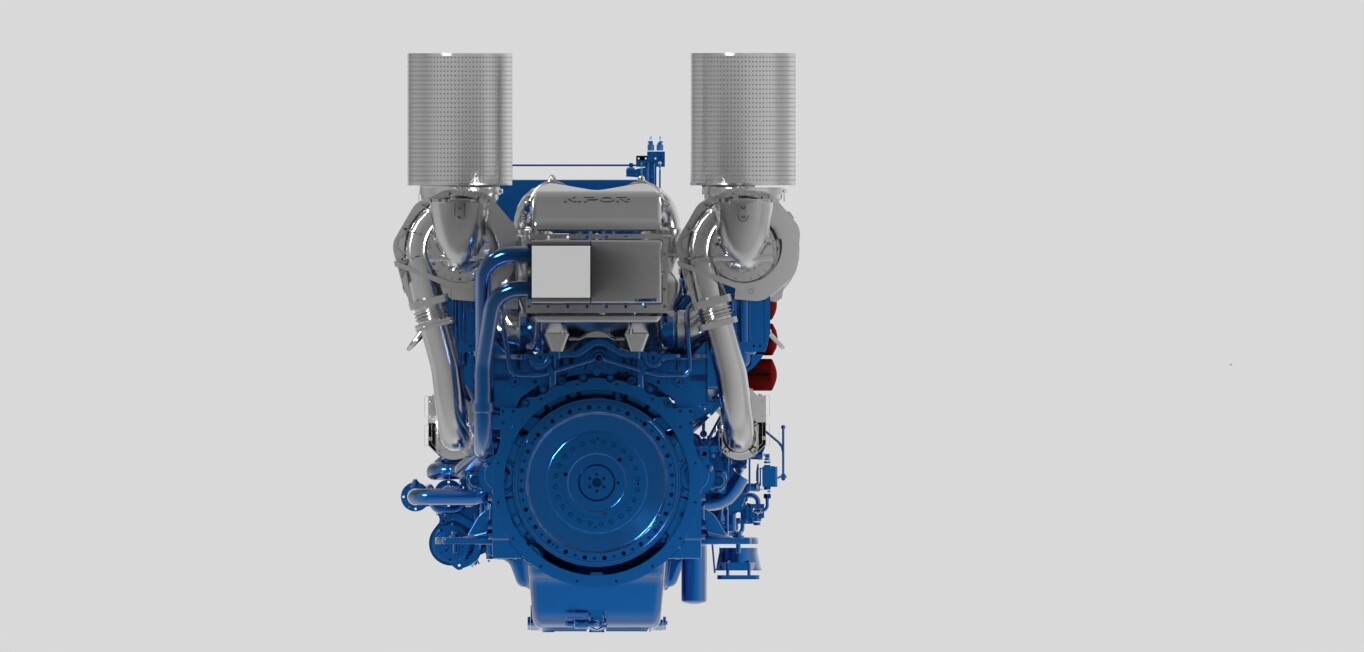

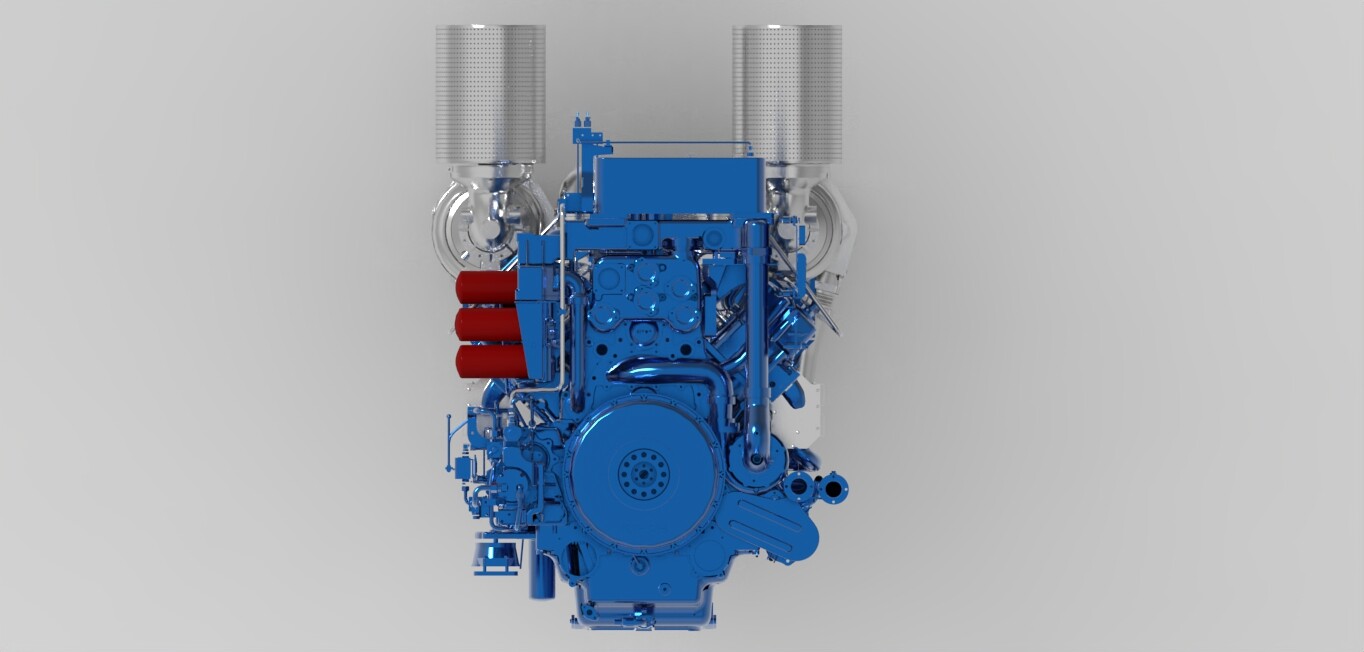

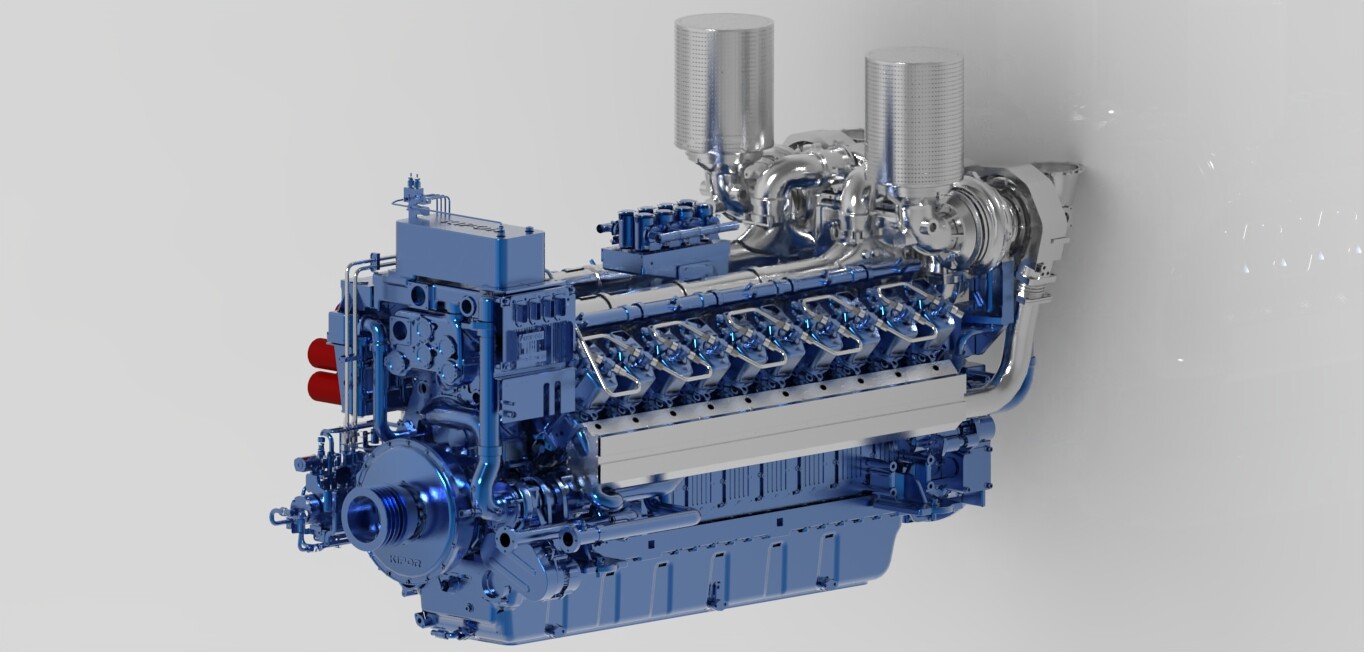

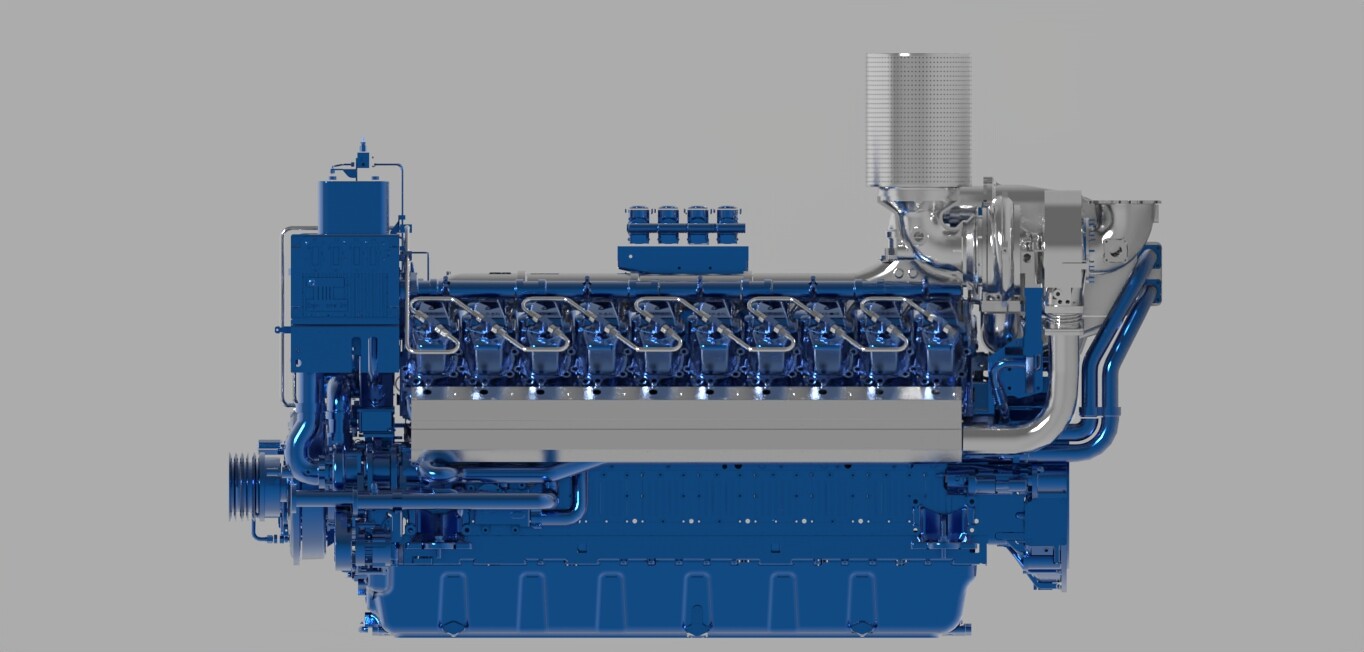

XD20V171ZLCR3100
EPIOR V-Type 20-Cylinder 3100 Diesel Engine Prime Power: 50Hz / 2425kW (60Hz / 2742kW)Standby Power: 50Hz / 2668kW (60Hz / 3016kW).It can be conveniently connected with generators of various brands. With a prime power speed of 50Hz / 1500rpm, the engine is suitable for 50Hz power supply scenarios. It can also meet 60Hz power supply requirements.
Thanks to its modular design, selection of high-strength materials, application of high-pressure common rail technology and optimized control system, the engine can achieve continuous full-power generation from shutdown in an extremely short time, ensuring the normal operation of users' core industries. It is an important power solution for emergency power generation and peak power supply.
Technical Parameters
Engine
Engine Manufacturer
EPIOR
Rated FrequencyHz5060
Prime/Standby PowerKW2425/26682742/3016
Rotation Speedrpm15001800
Engine Type
XD20V171ZLCR
Structure Type
20-cylinder 90° V type
Water-cooled   four-stroke, turbocharged, water-air-intercooled
Bore x Strokemm171×210
DisplacementL96.46
Engine Cooling Water VolumeL234
Lubricating System
Pressure Splash
Lubricant Type
Grade CF-4 or better, SAE15W-40
Lube CapacityL(Max)340~(Min)245
Starting SystemV24V electric start
Engine Fuel Consumptiong/KW.h186
