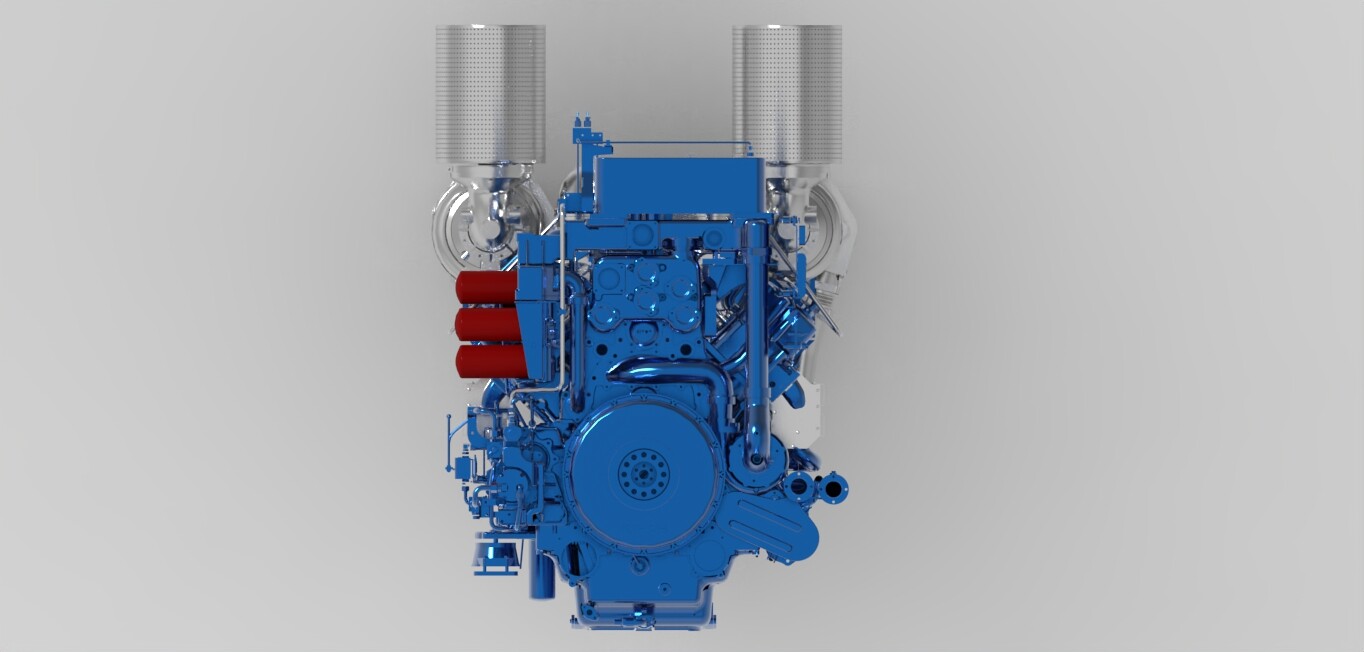

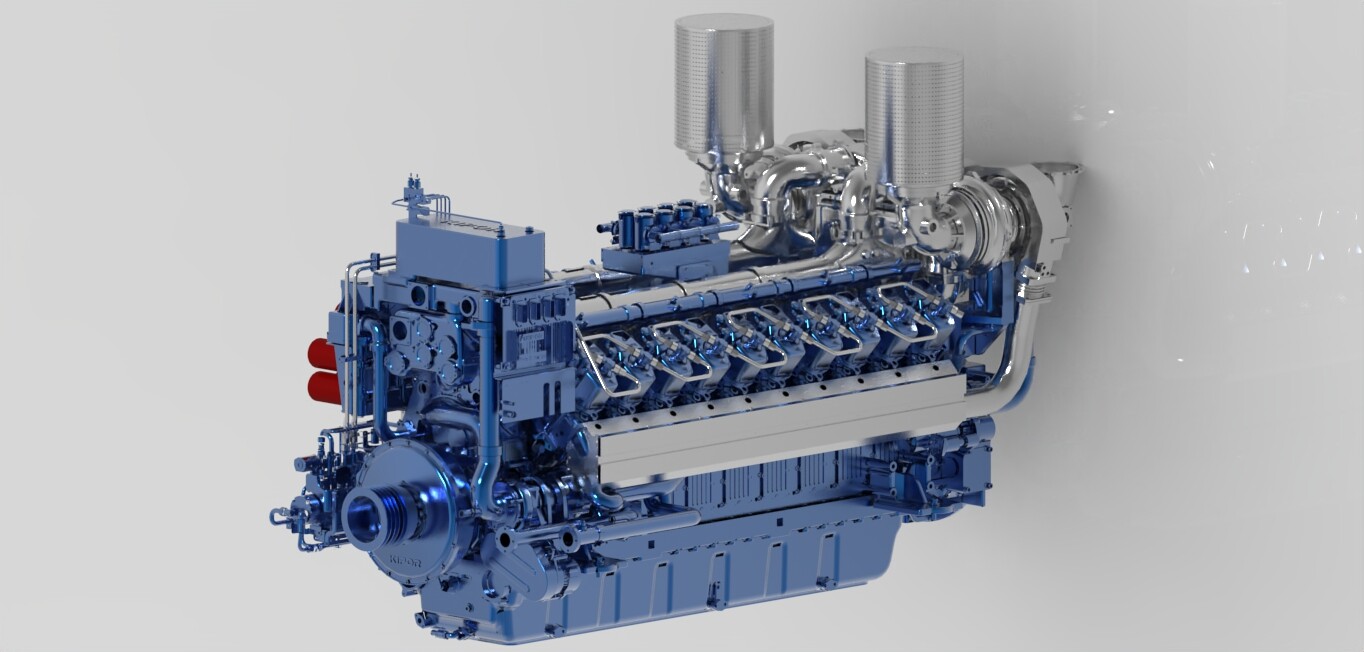

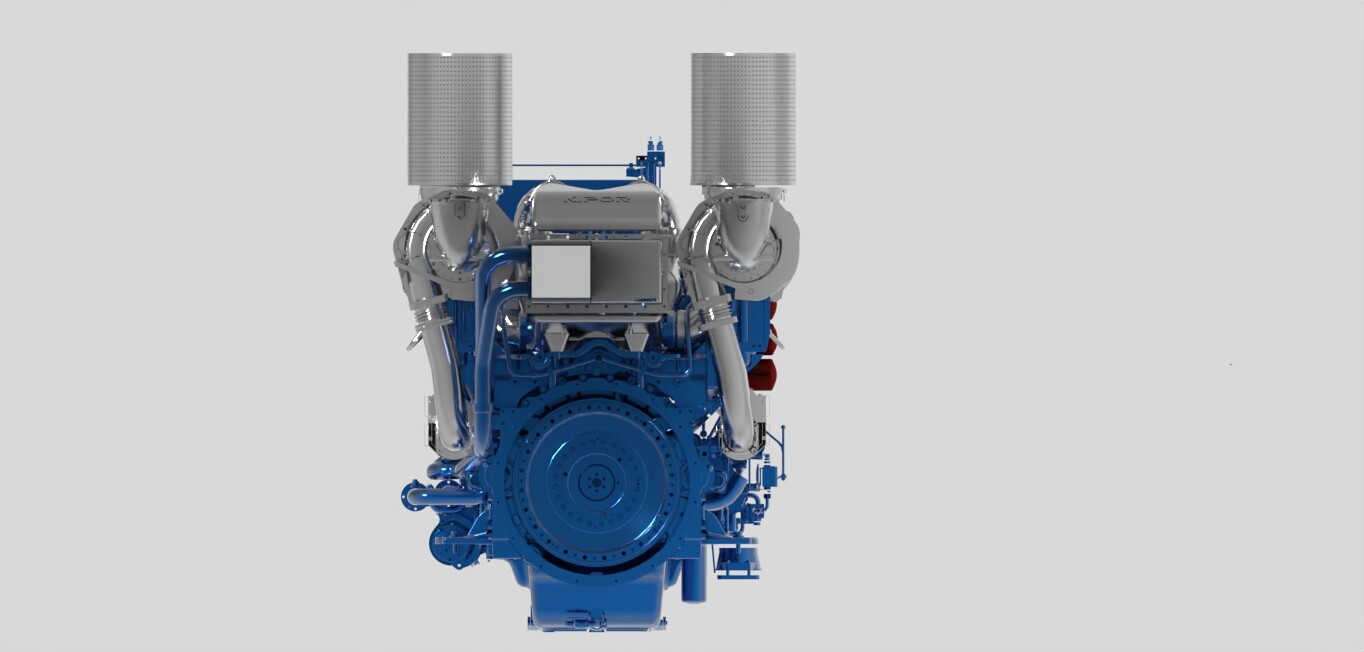

XD20V171ZLCR3500
EPIOR V-Type 20-Cylinder 3500 Diesel EnginePrime Power: 50Hz / 2600kW (60Hz / 3012kW)Standby Power: 50Hz / 2860kW (60Hz / 3313kW).The engine can be conveniently coupled with generator sets of various brands. With a prime motive speed of 50Hz / 1500rpm, it is suitable for 50Hz power supply scenarios. It can also meet 60Hz power supply requirements.
Featuring a modular design, high-strength materials, high-pressure common rail technology, and an optimized control system, the engine can achieve continuous full-power output from shutdown in an extremely short time, ensuring the normal operation of users' core industries. It is an ideal power solution for emergency power generation and peak power supply.
Technical Parameters
Engine
Engine Manufacturer
EPIOR
Rated FrequencyHz5060
Prime/Standby PowerKW2600/28603012/3313
Rotation Speedrpm15001800
Engine Type
XD20V171ZLCR
Structure Type
20-cylinder 90° V type
Water-cooled   four-stroke, turbocharged, water-air-intercooled
Bore x Strokemm171×210
DisplacementL96.46
Engine Cooling Water VolumeL234
Lubricating System
Pressure Splash
Lubricant Type
Grade CF-4 or better, SAE15W-40
Lube CapacityL(Max)340~(Min)245
Starting SystemV24V electric start
Engine Fuel Consumptiong/KW.h186
