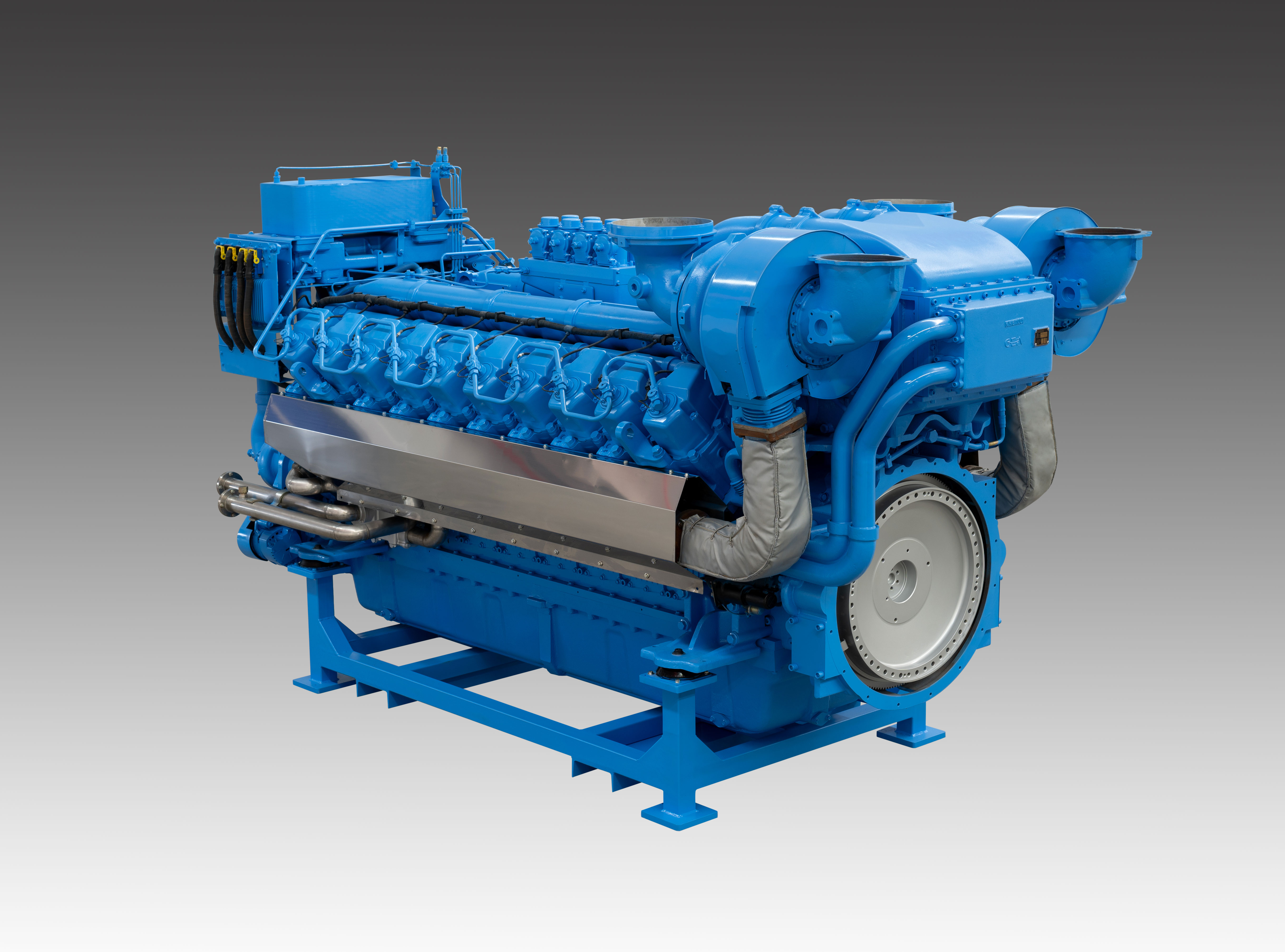

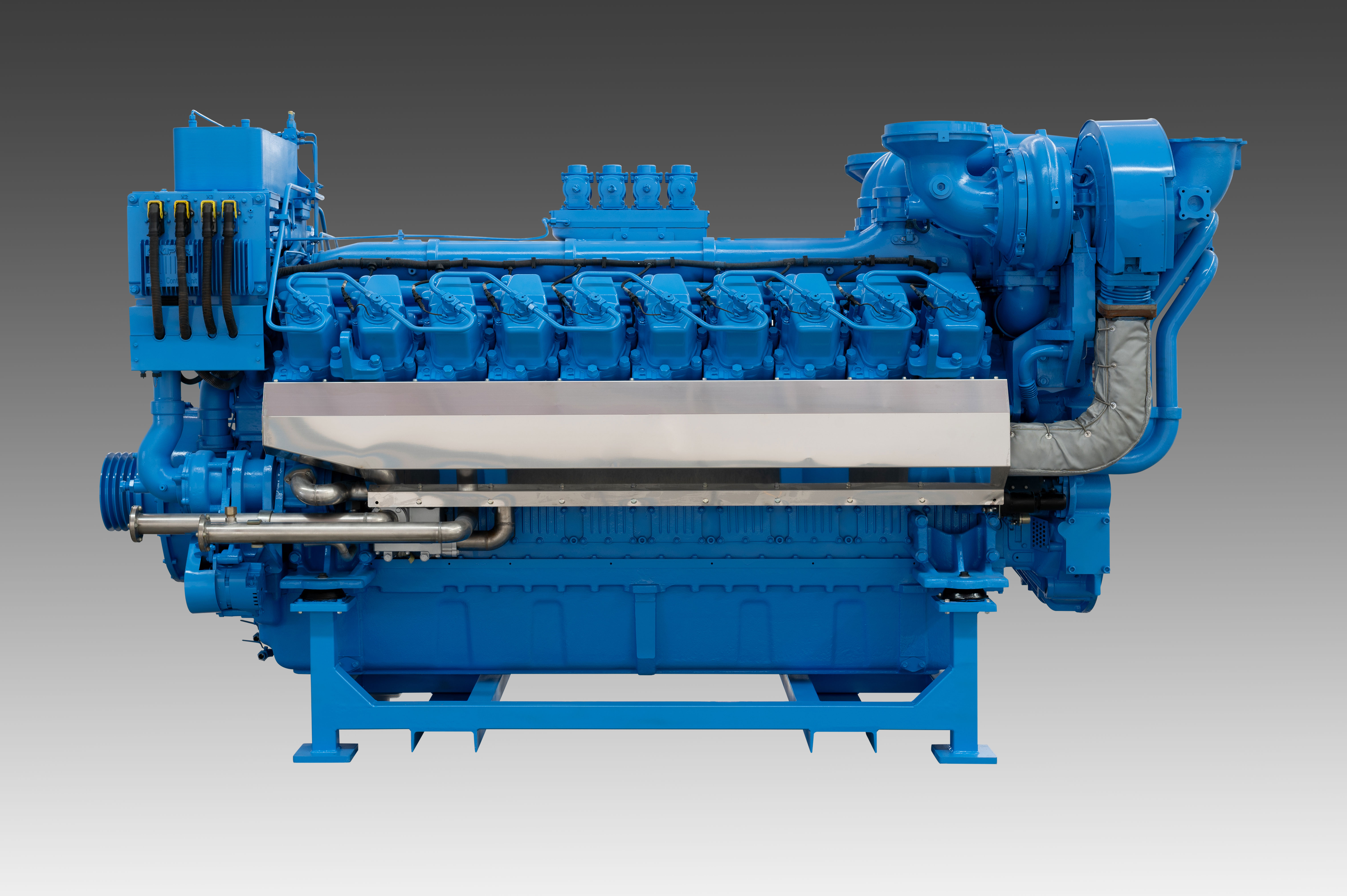

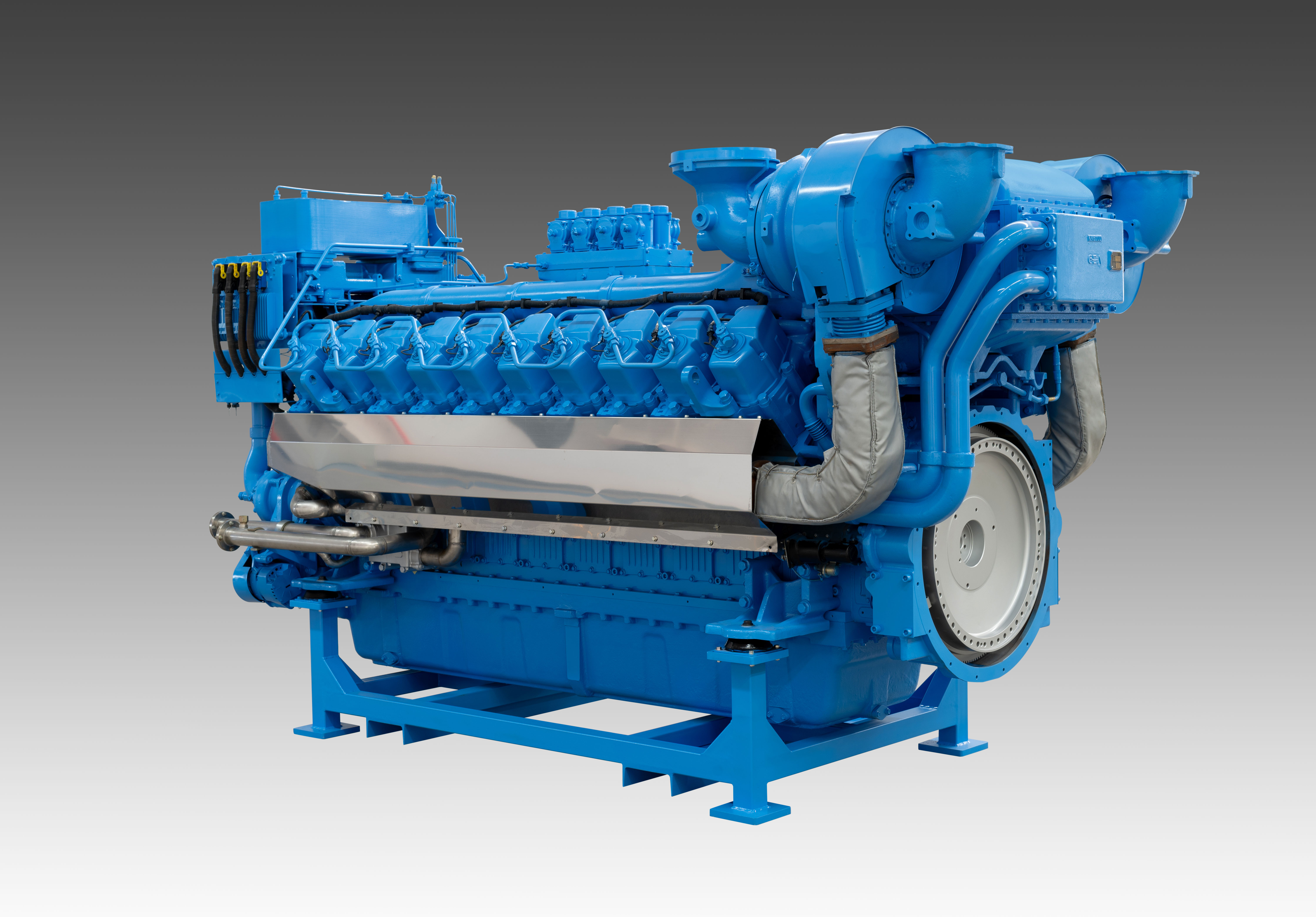

XD20V171ZLCR-Y
The Epior V-type 20-cylinder diesel power product delivers a maximum power of 2,600 kW and a peak torque of 14,692 N·m. With its high torque and low fuel consumption, it is widely used in the oil and gas extraction industry, providing direct power for extraction equipment such as winches, mud pumps, and offshore drilling and servicing rigs. Thanks to its high-quality materials and proprietary R&D technology, the engine ensures safe, reliable, and continuous power supply for extraction operations.
Technical Parameters
Engine Type             XD20V171ZLCR-Y
Engine Manufacturer
EPIOR
Rated PowerKW2600
Max TorqueN·m14692
Structure Type
20-cylinder 90°V type
Water-cooled four-stroke, turbocharged, water-air-cooled
Bore x Strokemm171×210
DisplacementL96.45
Coolant CapacityL225
Oil CapacityL345
Starting SystemV24V electric start
Length x Width x Heightmm4392×1553×2134
Net Weightkg9400

Engine Technical Data
Rotation SpeedRPM130014001500160017001800
Torque OutputIb-ft108371073710510104771035810174
N ·m146921455714249142051404413794
Power Outputhp268228623001321833533487
KW200021342238238025002600
Fuel ConsumptionIb/hp-hr0.3130.3110.3110.3130.3140.318
g/kW-hr190.5189189190191193.5
