XDE2900E

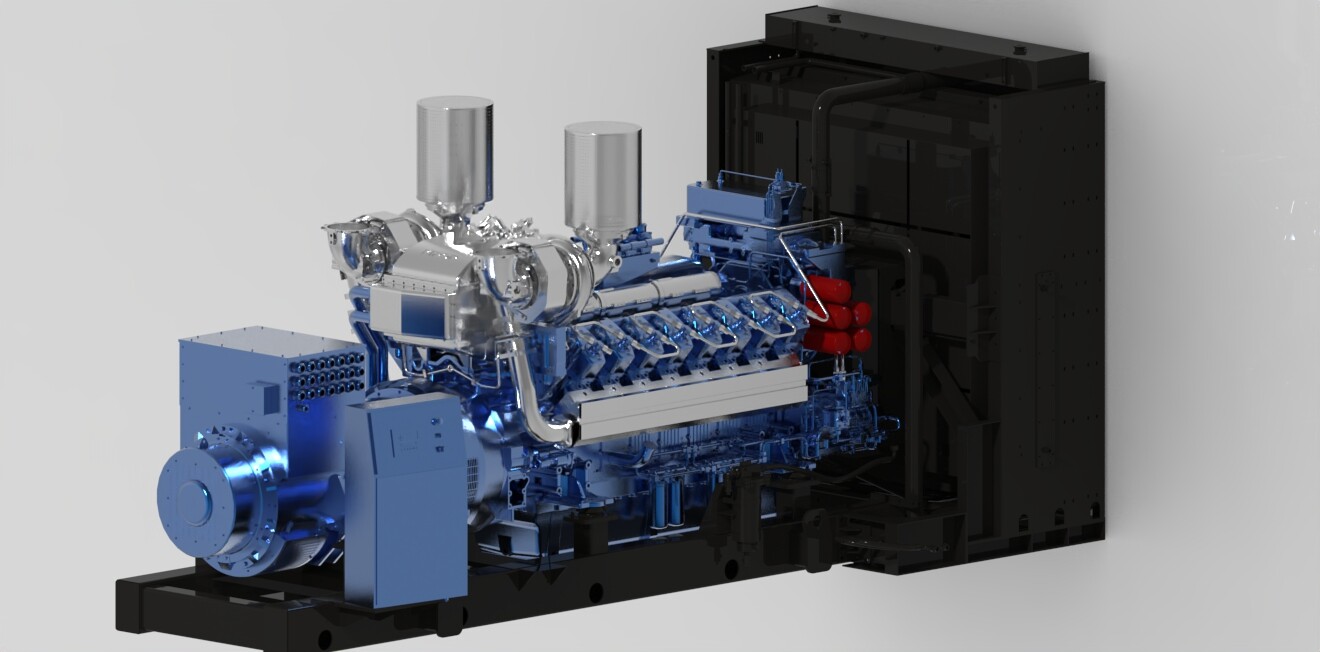

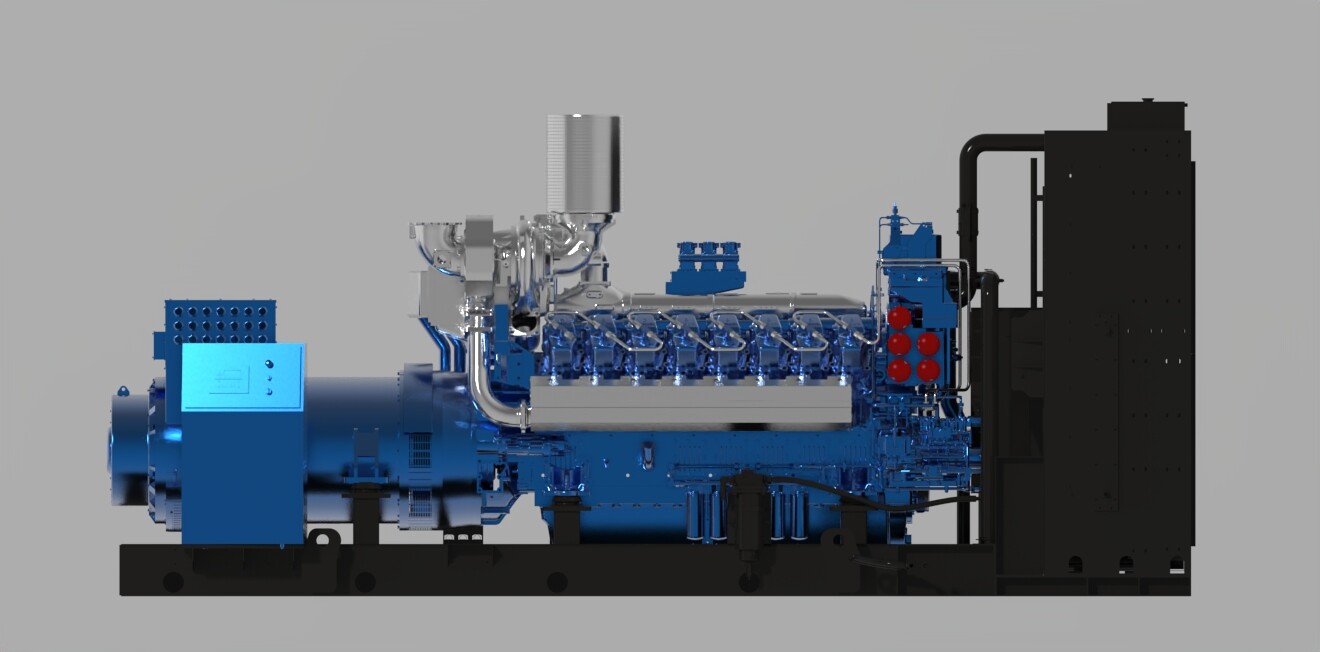

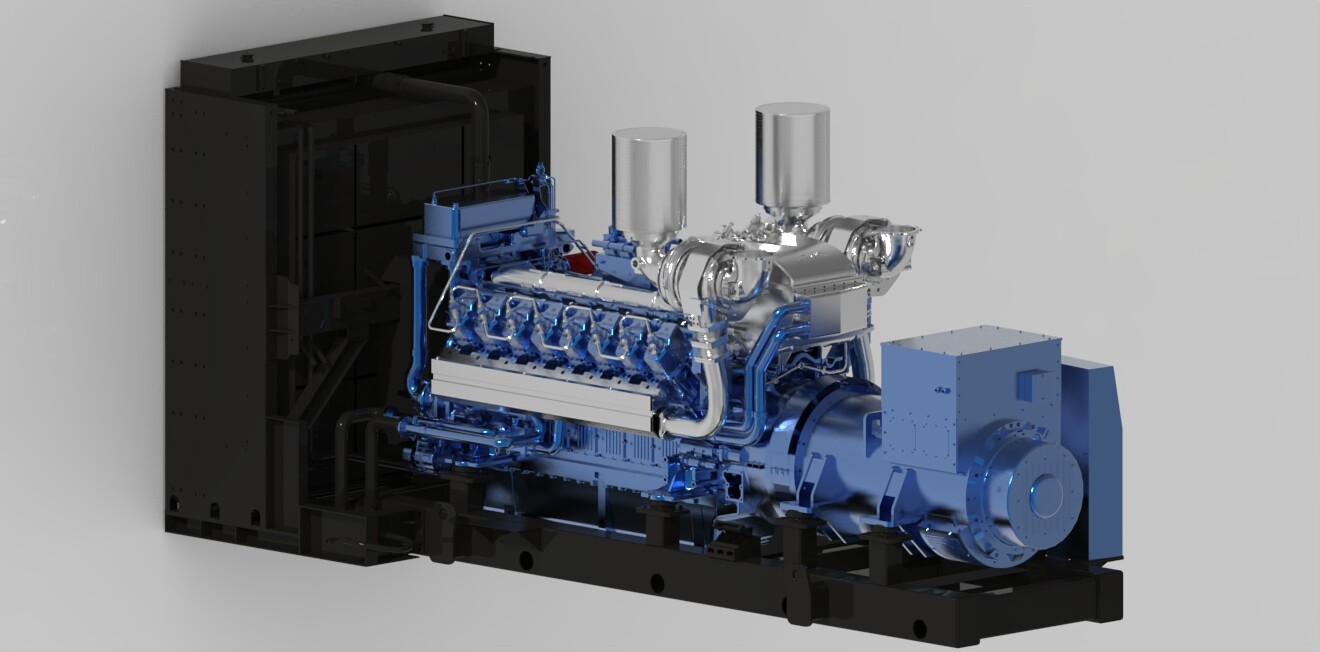

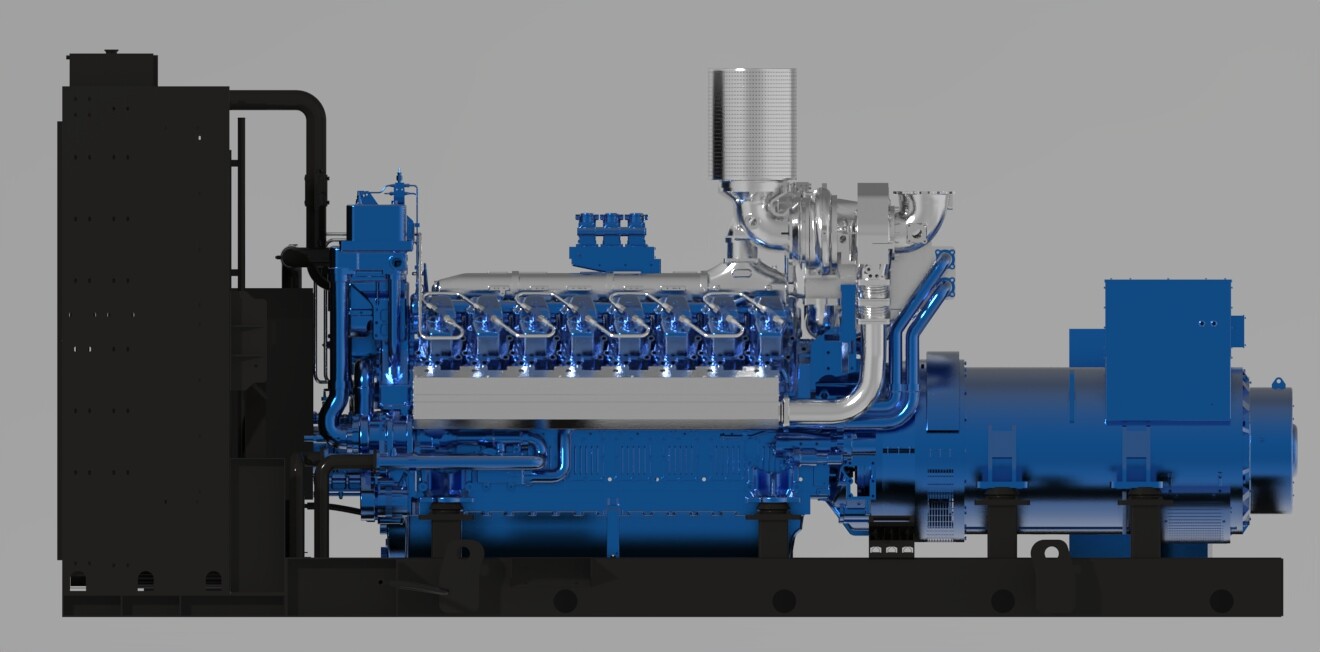

EPIOR V-Type 20-Cylinder 2900E Diesel Generator Set Prime Power: 50Hz / 2000kW (60Hz / 2320kW) Standby Power: 50Hz / 2200kW (60Hz / 2550kW).It provides reliable power supply for critical scenarios and facilities such as medical institutions, data centers, airports, nuclear (thermal) power plants and microgrids.Featuring a modular design, high-quality materials, advanced high-pressure common rail technology and a continuously optimized control system, the generator set can achieve continuous full-power output in an extremely short time, ensuring the normal operation of users' core industries and earning wide trust from customers.
Technical Parameters
Generator SetXDE2900E
Rated FrequencyHz5060
Prime PowerkVA25002900
KW20002320
Standby PowerkVA27503200
KW22002550
Rated VoltageV400/230416/240
Rated CurrentA36094025
Rated Speedr/min15001800
Generator
Manufacturer
EPIOR
Generator Type
XFS2750XFS3200G1
Number of Poles
4
Excitation Mode
PMG(with e-AVR)
Power Factorcosφ0.8(lag)
Insulation Grade
H
Engine
Manufacturer
EPIOR
Engine Type
XD20V171ZLCR
Structure Type
20-cylinder 90° V type

Water-cooled   four-stroke, turbocharged, water-air-intercooled
Bore x Strokemm171×210
DisplacementL96.46
Prime/Standby PowerKW2083/22922417/2657
Engine Cooling Water CapacityL234
Lubricating System
Pressure Splash
Lubricant Type
Grade CF-4 or better, SAE15W-40
Lube CapacityL(Max)340~(Min)245
Starting SystemV24V electric start
Engine Fuel Consumptiong/KW·h186195
Genset
Fuel Type
Diesel:0#(Summer)- 10#(Winter)- 35#(Cold)
Noise Level(1m)dB(A)107
Exhaust Gas Temperature≤450
Dimensionsmm7185×2900×32508385×2900×3250
Net Weightkg1915020150
