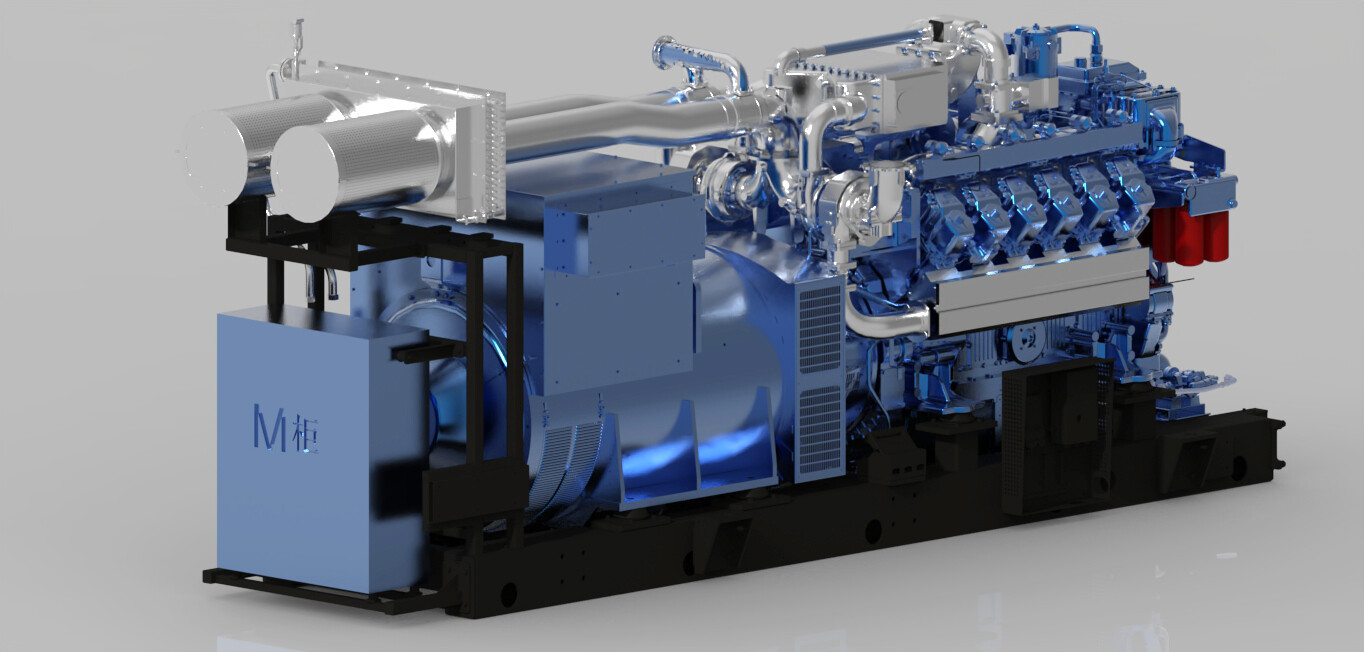

XE512-B
Epior V12 biogas generator set delivers a power output of 1000 kW at 50Hz, featuring high fuel economy and power generation efficiency.
It is widely applied in scenarios such as industrial wastewater treatment, landfill or kitchen waste treatment, and livestock manure treatment.
With low failure rate, low maintenance cost, low fuel consumption and low emissions, it helps customers achieve greater economic benefits.
In the fields of environmental protection, urban beautification and resource utilization, we continuously use technology and products to promote urban progress and realize the maximum value of the products.
Technical Parameters
Generator SetUnitXE512L5-BXE512L6-B
Generator Set
Rated FrequencyHz5060
Rated PowerKW10001000
Rotation Speedrpm15001800
Gas Consumption RateMJ/kW·h8.748.74
Lube Oil Consumption Rateg/kW·h≤0.35
DimensionsM×M×M4545×1.80×2.475765×1.80×2.47
Net WeightKg1065011650
Engine
Engine Model
X512-B
Shaft Output PowerkW1042
Rotation Speedrpm1500
Structure
V90°
Number of Cylinders
12
Boremm171
Strokemm210
DisplacementL57.87
Variable Speed Gearbox
-1500/1800
Generator
Manufacturer
EPIOR
Generator Model
XFS1250L5XFS1250L6
FrequencyHz5060
Power Factorcos φ0.8
Efficiency%96
CapacitykVA1250
Number of Poles
4
Protection Class
IP23
Insulation Class
H
Energy Balance
Electrical PowerkW1000
Jacket Water HeatkW386
Outlet Temperature of Jacket Water84/92
Inter-cooling Water HeatkW124
Exhaust Heat (Cooled to 120°C)kW583
Exhaust Temperature≤550
Efficiency
Electrical Efficiency%41.241.2
Heat Efficiency%44.644.5
Total Efficiency%85.885.7
