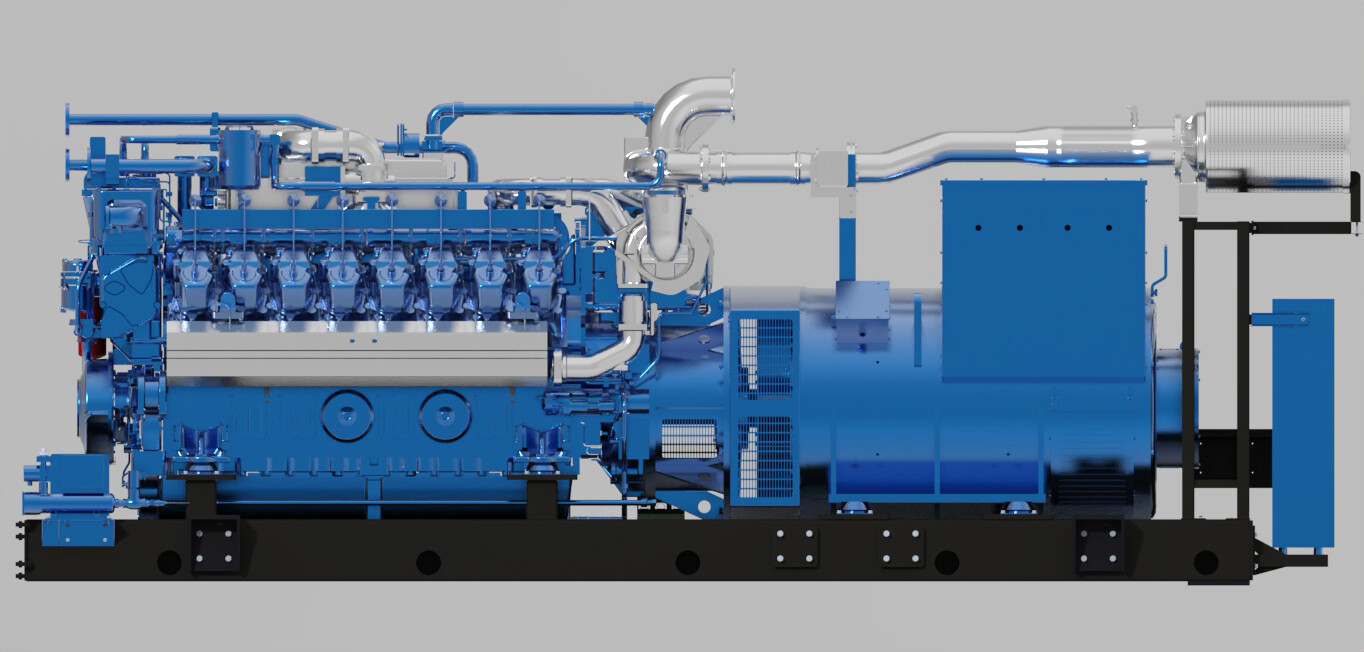

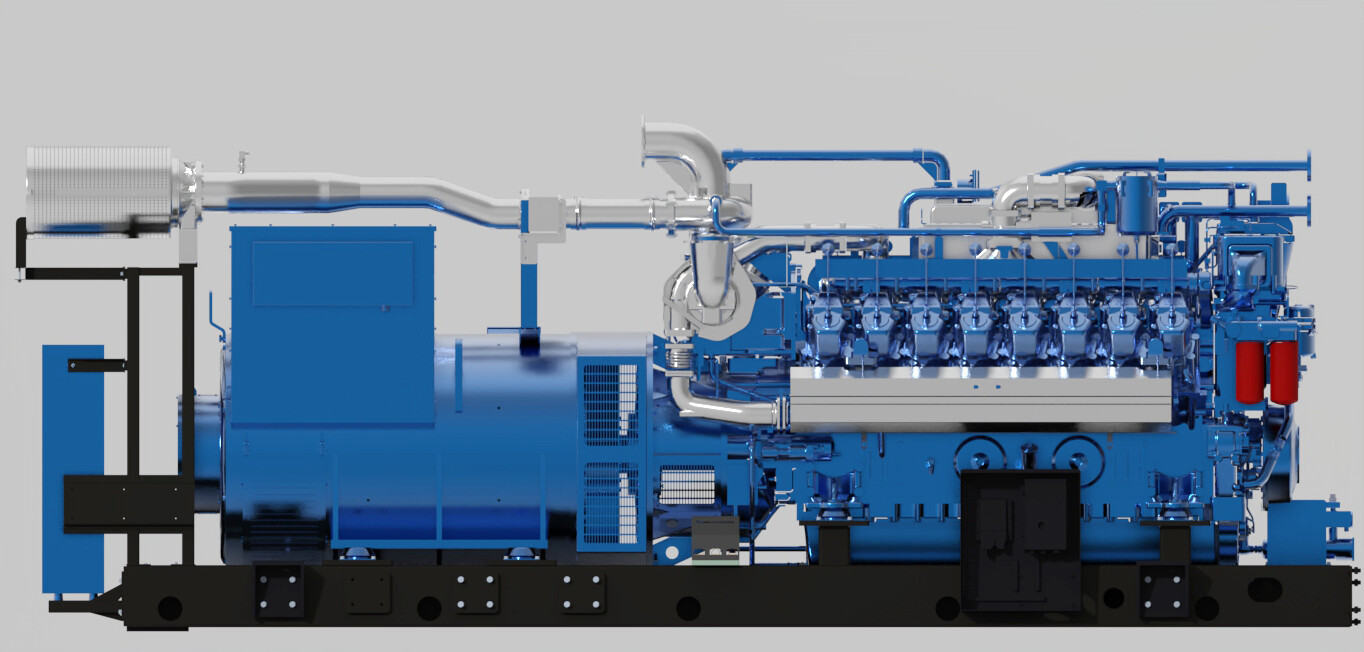

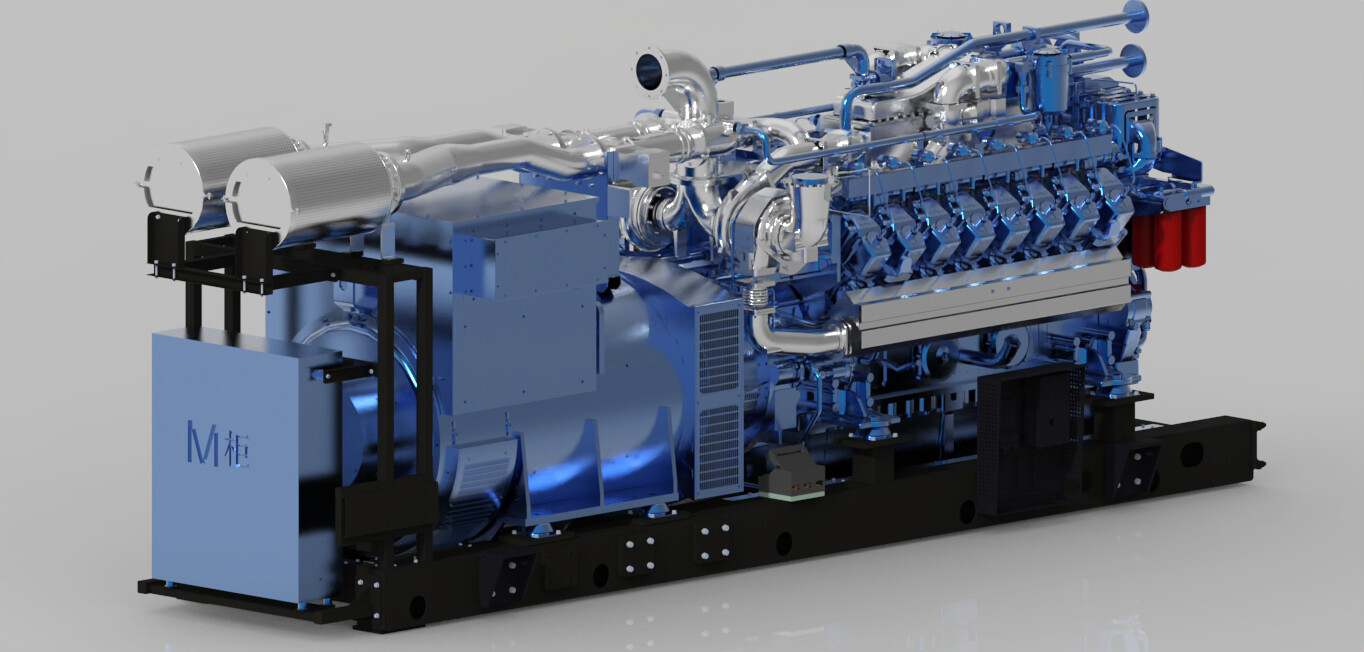

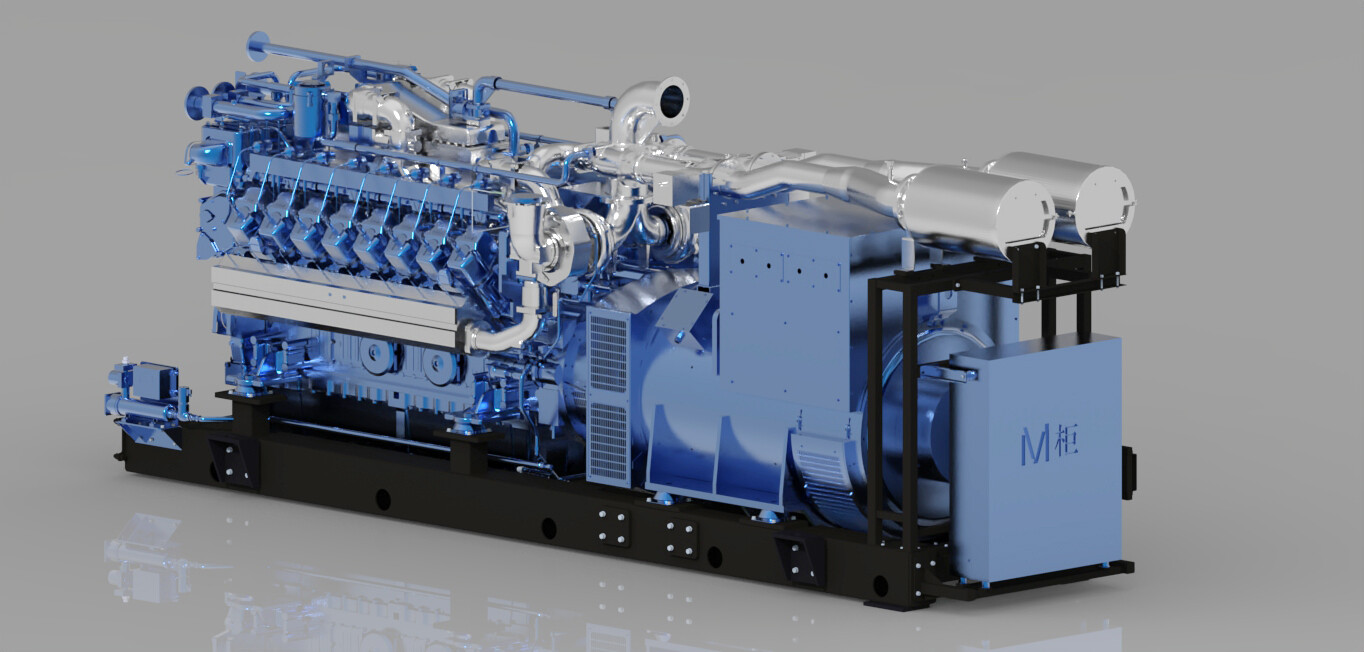

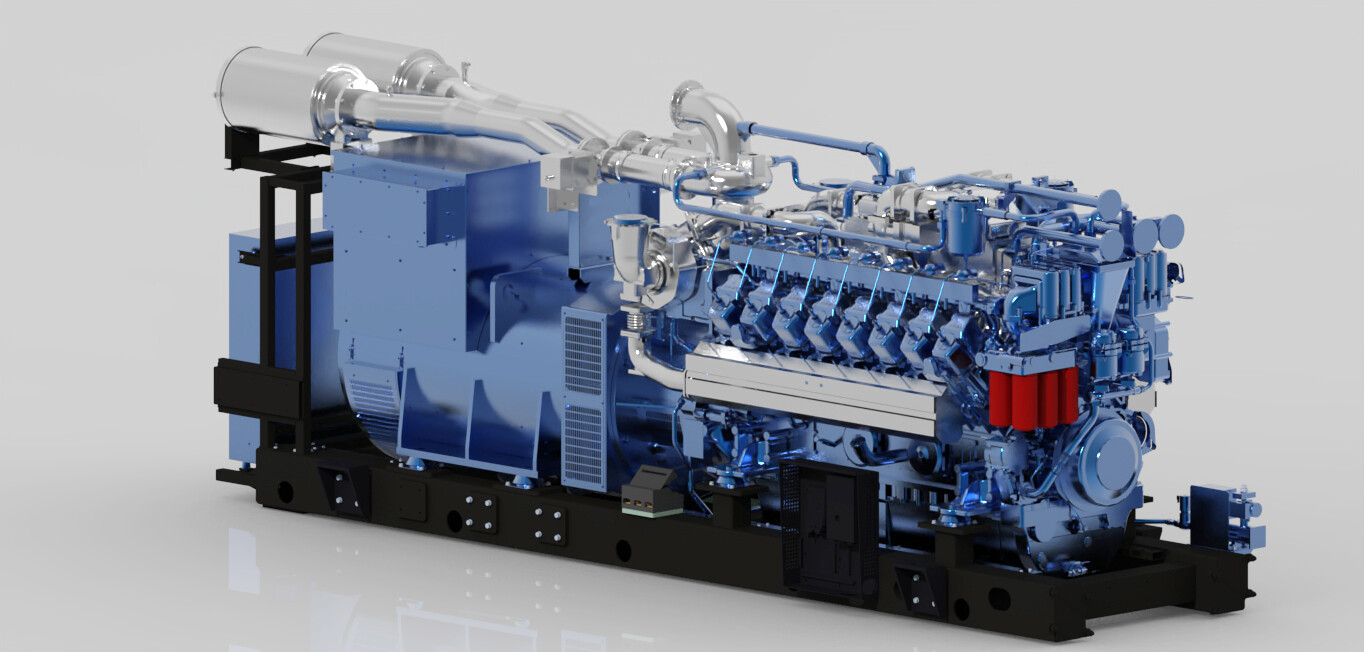

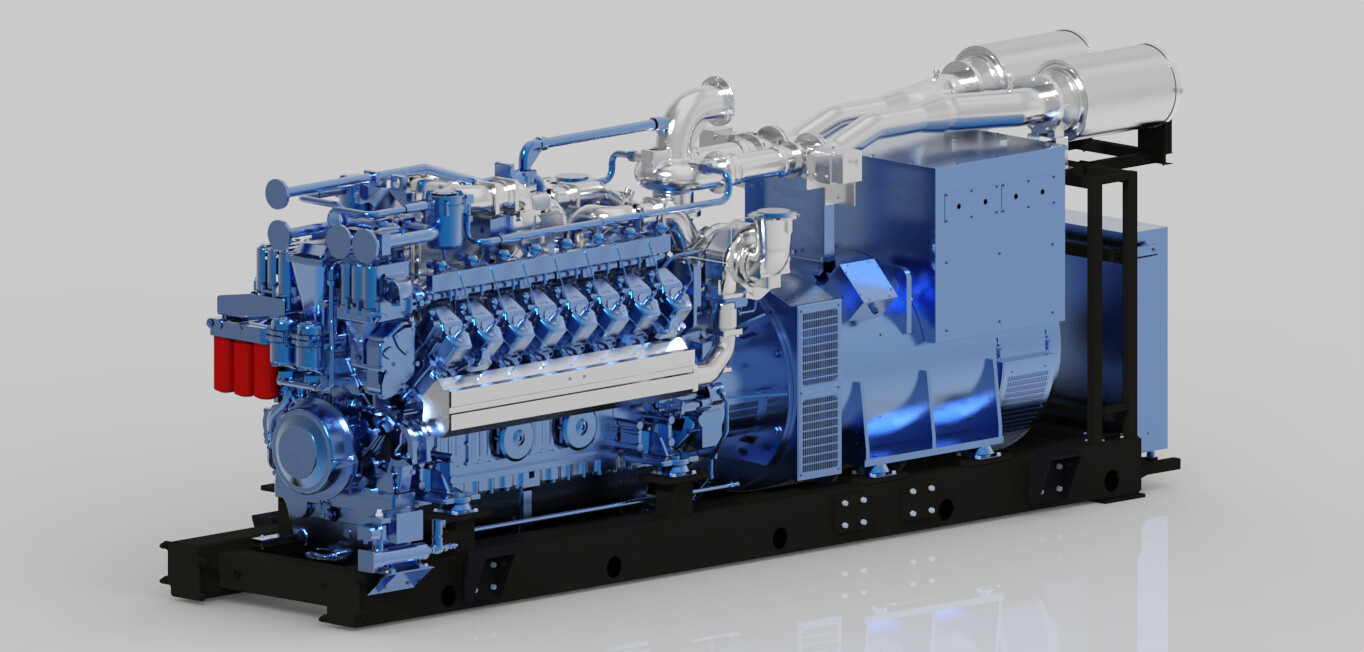

XE516-SY
Epior V-type 16-cylinder biomass gas generator set with a rated power of 1350 kW. It is mainly used in combined heat and power (CHP) applications fueled by tail gas generated from the metal smelting industry.
Featuring long service life, low failure rate, low maintenance cost and high power generation efficiency, the EPIOR biomass gas generator set significantly reduces operation and maintenance (O&M) costs. It not only meets users’ power generation demands but also enables waste heat recovery and utilization to achieve higher economic benefits.
Furthermore, the unit complies with national environmental protection emission requirements and can be equipped with tail gas treatment systems to meet emission standards in special regions.
Technical Parameters
Generator SetUnitXE516L5-SYXE516L6-SY
Generator Set
Rated FrequencyHz5060
Rated PowerKW13501350
Rotation Speedrpm15001800
Gas Consumption RateMJ/kW·h8.768.80
Lube Oil Consumption Rateg/kW·h≤0.35
DimensionsM×M×M5.36×1.80×2.476.59×1.80×2.47
Net WeightKg1850019500
Engine
Engine Model
X516-SY
Shaft Output PowerkW1406
Rotation Speedrpm1500
Structure
V90°
Number of Cylinders
16
Boremm171
Strokemm210
DisplacementL77.17
Variable Speed Gearbox
-1500/1800
Generator
Manufacturer
EPIOR
Generator Model
XFS1750L5XFS 1750L6
FrequencyHz5060
Power Factorcos φ0.8
Efficiency%96
CapacitykVA1687.5
Number of Poles
4
Protection Class
IP23
Insulation Class
H
Energy Balance
Electrical PowerkW1350
Jacket Water HeatkW452
Outlet Temperature of Jacket Water84/92
Inter-cooling Water HeatkW171
Exhaust Heat (Cooled to 120°C)kW725
Exhaust Temperature≤550
Efficiency
Electrical Efficiency%41.140.9
Heat Efficiency%44.544.4
Total Efficiency%85.685.3
