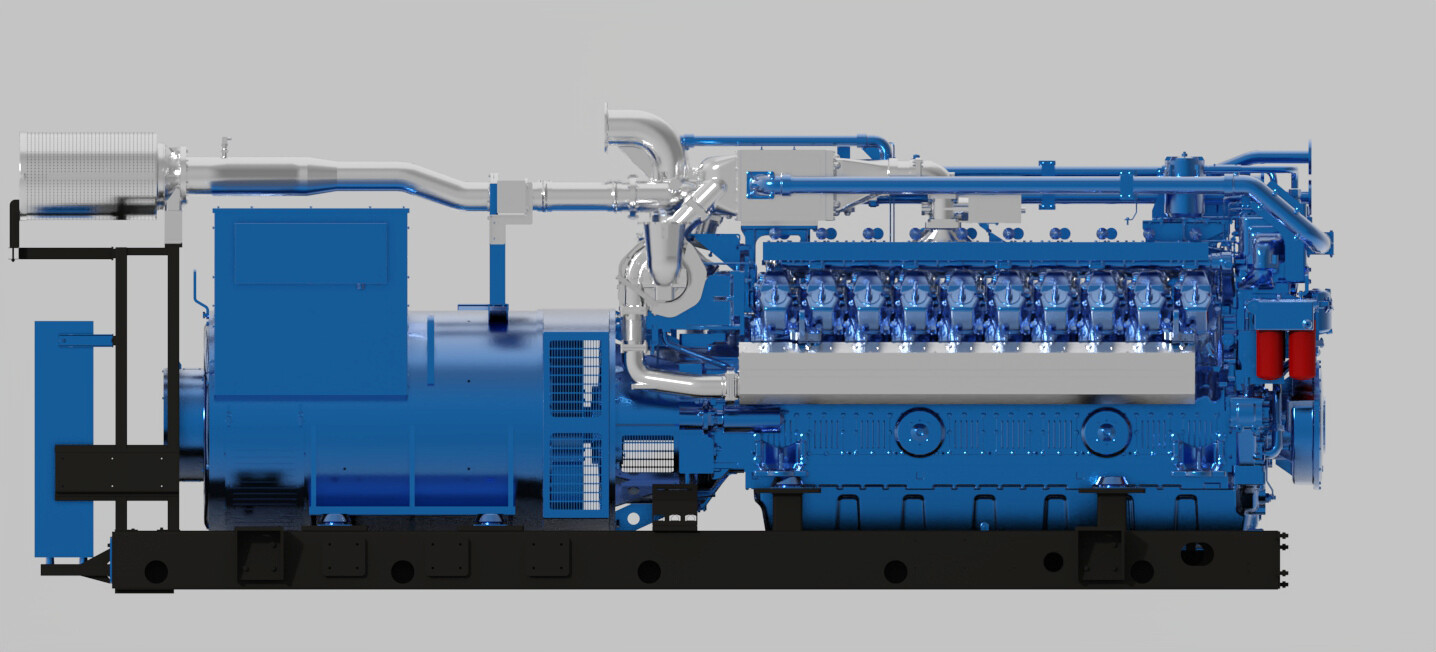

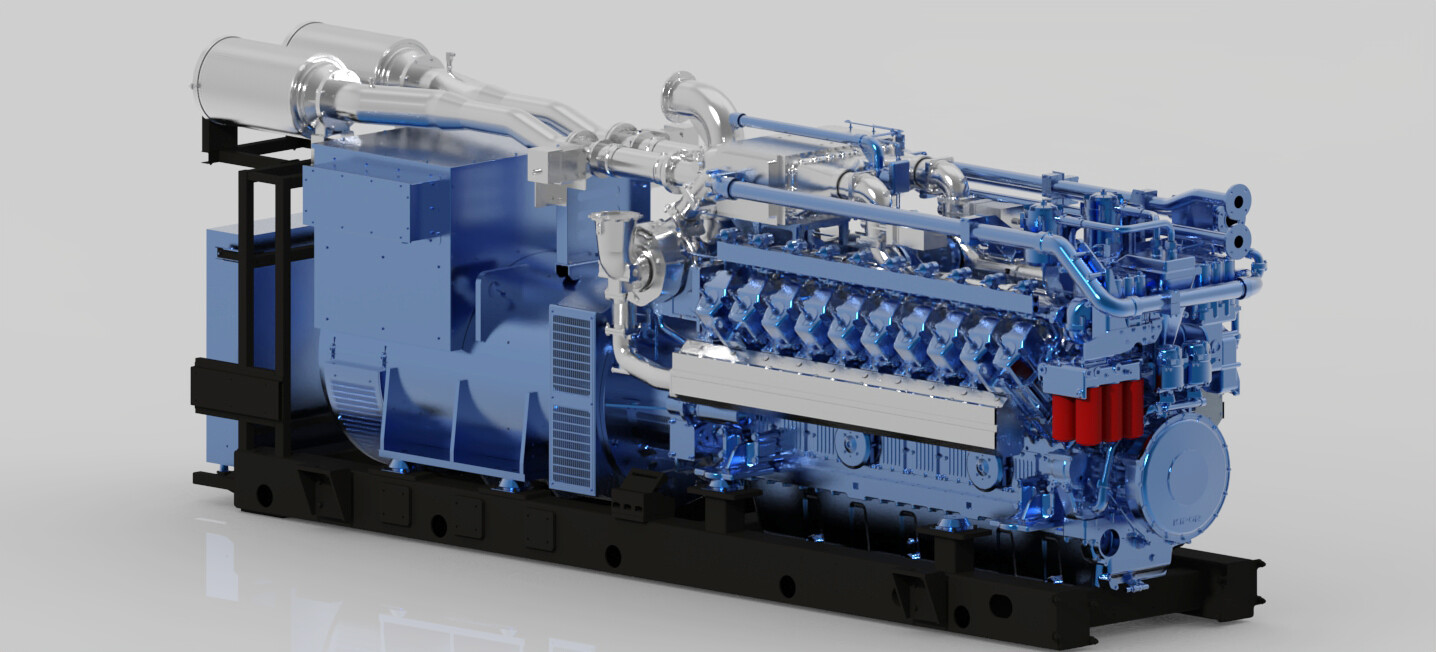

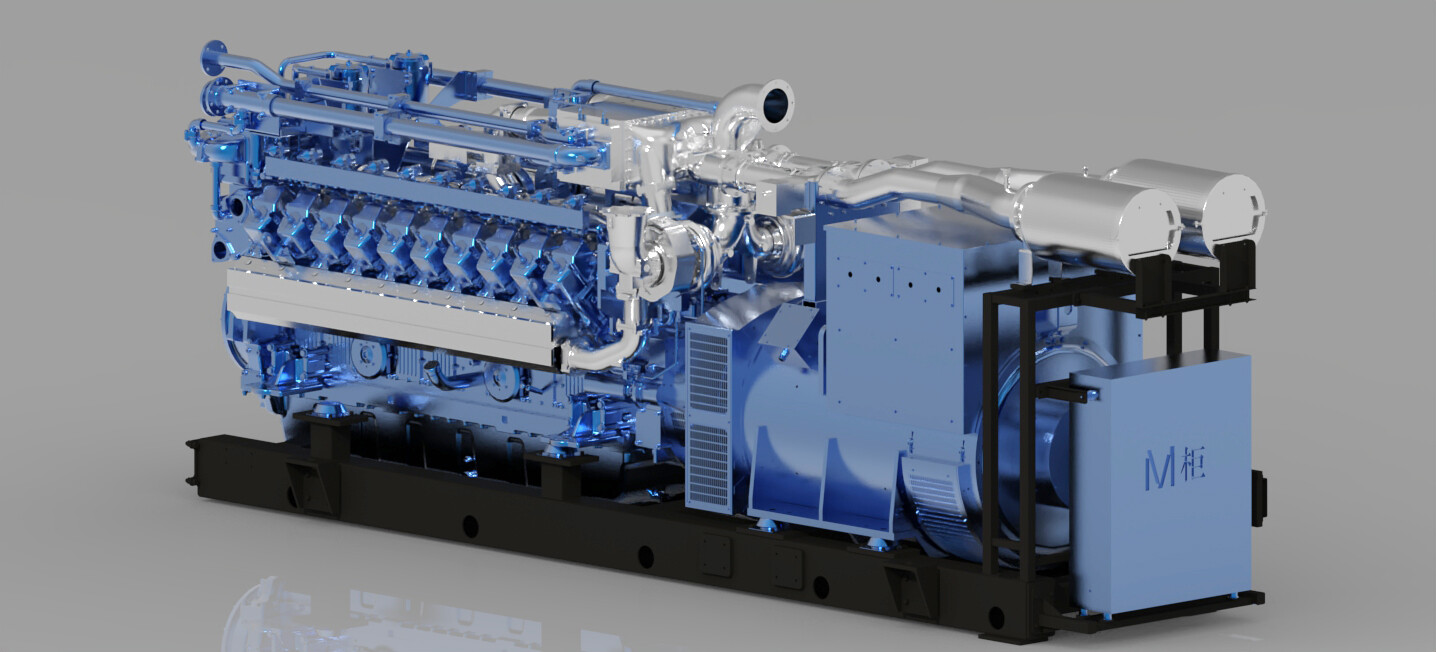

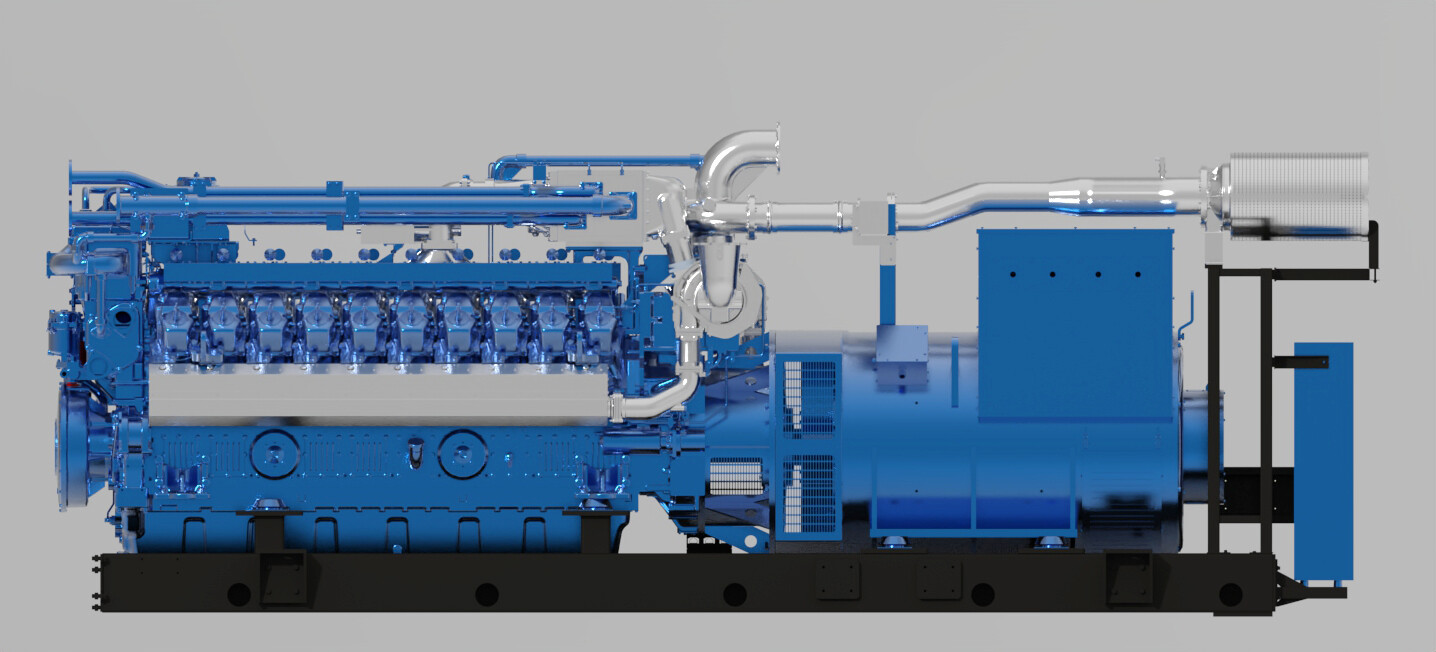

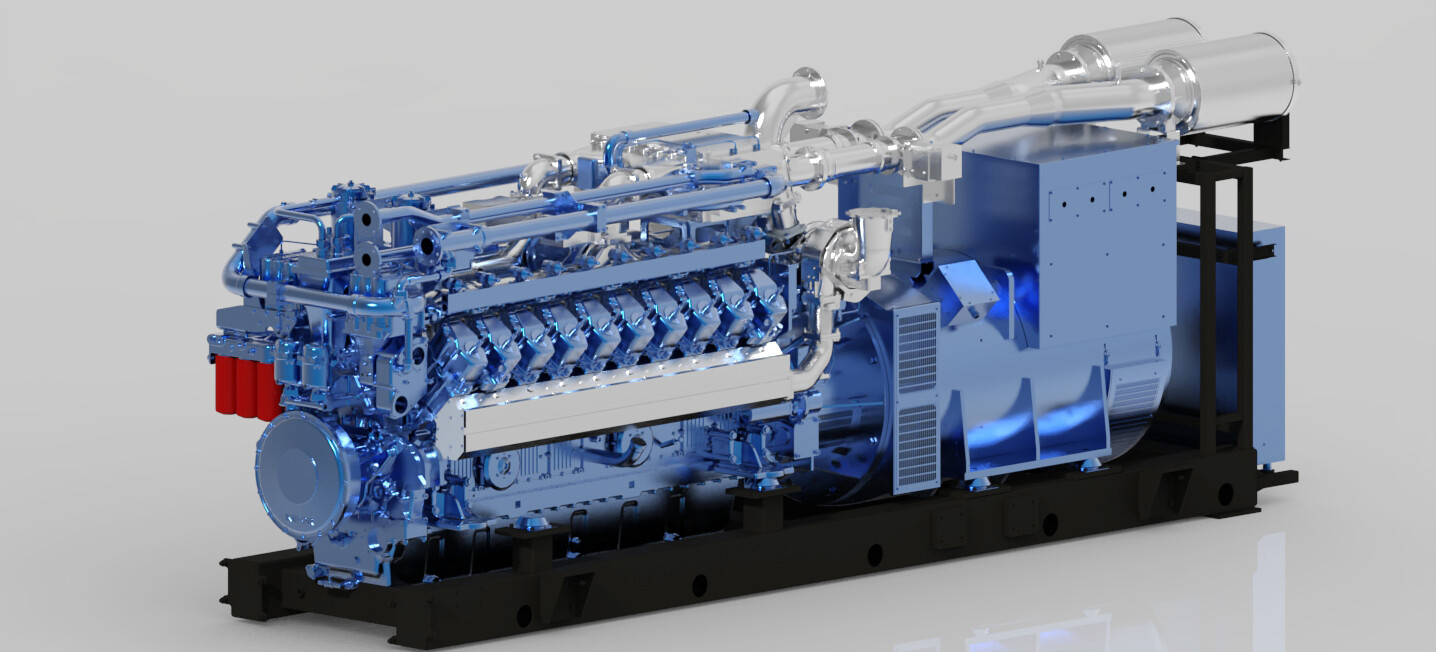

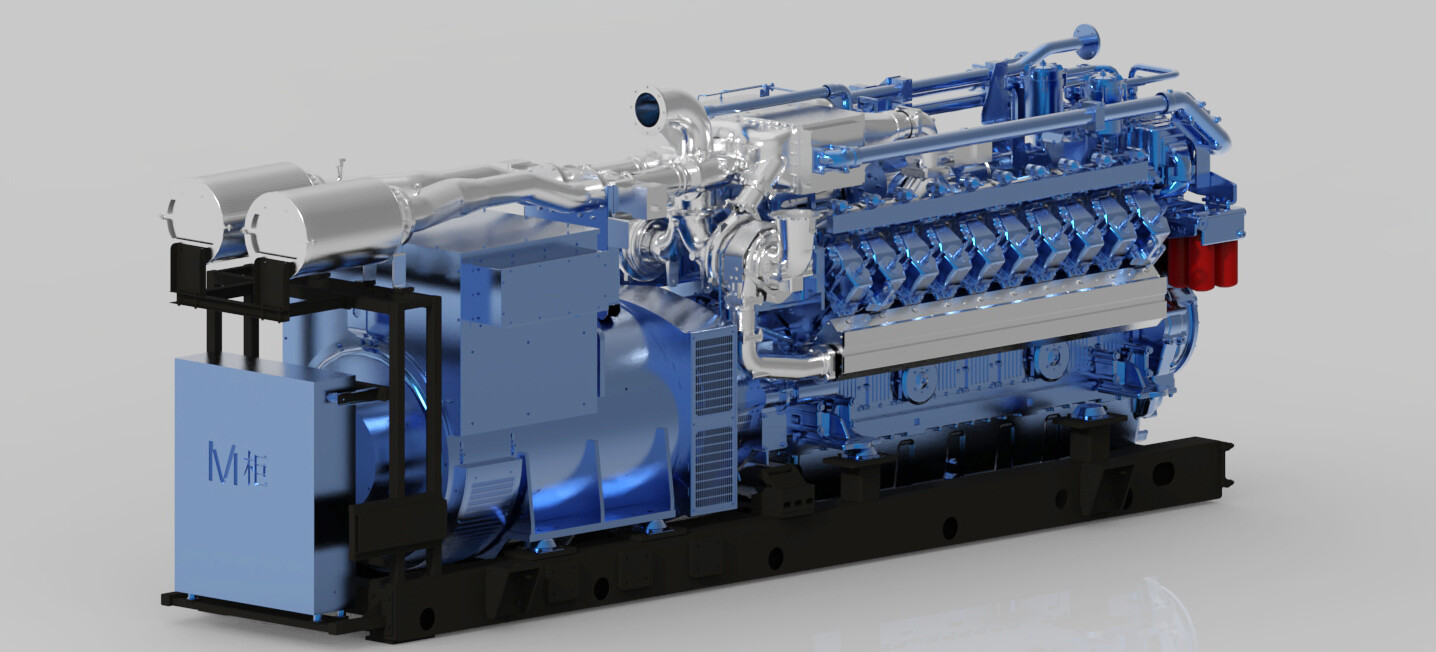

XE520-B
Epior V20 biogas generator set delivers a power output of 1650 kW at 50Hz, featuring high fuel economy and power generation efficiency.
It is widely applied in industrial wastewater treatment, landfill or kitchen waste treatment, livestock manure treatment and other scenarios.
With low failure rate, low maintenance cost, low fuel consumption and low emissions, it helps customers achieve greater economic benefits.
In the fields of environmental protection, urban beautification and resource utilization, we continuously drive urban progress through technologies and products, maximizing the value of our products.
Technical Parameters
Generator SetUnitXE520L5-BXE520L6-B
Generator Set
Rated FrequencyHz5060
Rated PowerKW16501650
Rotation Speedrpm15001800
Gas Consumption RateMJ/kW·h8.598.61
Lube Oil Consumption Rateg/kW·h≤0.35
DimensionsM×M×M6.28×1.80×2.477.50×1.80×2.47
Net WeightKg1850019500
Engine
Engine Model
X520-B
Shaft Output PowerkW1719
Rotation Speedrpm1500
Structure
V型90°
Number of Cylinders
20
Boremm171
Strokemm210
DisplacementL96.46
Variable Speed Gearbox
-1500/1800
Generator
Manufacturer
EPIOR
Generator Model
XFS2150L5XFS 2150L6
FrequencyHz5060
Power Factorcos φ0.8
Efficiency%96
CapacitykVA2062.5
Number of Poles
4
Protection Class
IP23
Insulation Class
H
Energy Balance
Electrical PowerkW1650
Jacket Water HeatkW532
Outlet Temperature of Jacket Water84/92
Inter-cooling Water HeatkW216
Exhaust Heat (Cooled to 120°C)kW846
Exhaust Temperature≤550
Efficiency
Electrical Efficiency%41.941.8
Heat Efficiency%4544.9
Total Efficiency%86.986.7
