Containerized Diesel Generator Set

‹

›

‹

›

Containerized generator sets
The well-designed product structure of Epior makes it easy to transport the containerized generator sets to any place where power supply is needed. The gensets are driven by high-performance diesel engines and equipped with brushless synchronous alternators for stable operation even in extremely harsh environments. The rugged 20-foot and 40-foot CSCISO containerized enclosures are easy to handle by crane or forklift, and feature lockable, extra-wide operating doors that keep all components within easy reach for servicing and maintenance.
Contact Us
Features and Benefits

Superior Cooling Capacity

Equipped with an advanced cooling system, the containerized generator set can deliver 100% power output at 40°C environments at 1000m altitude, significantly reducing shutdown risks in extreme temperatures and high-altitude areas

Low-Noise Operation

Intake and exhaust ports are covered with soundproof materials, equipped with exhaust silencers and elbows. Ensures ultra-quiet operation, making it the optimal choice for noise-sensitive areas

Exceptional Service Accessibility

Radiators, engines and alternators are mounted on steel platforms. Features flexible rubber-sealed dual-side maintenance doors and professional tools for easier maintenance, while stainless steel hinges extend service life

Premium Standard Configuration

Standard protection systems and accessories ensure continuous operation under extreme and challenging conditions

Standardized Enclosure

The container holds CSC/CCS certificates, allowing direct shipment by cargo vessels

Special Coating

The enclosure is coated with high-strength anti-rust polyurethane paint, featuring sun-proof, rain-proof, UV-resistant properties for long-term durability

Technical Parameters

XDE900C

Type No. .XDE900C
rated frequencyHz5060
Main powerkVA810900
KW650720
reserve powerkVA900990
KW720720
rated voltageV400/230416/240
rated currentA11691249
Rated speedr/min15001800
alternators
Generator manufacturers
EPIOR
Generator Model
XFS800
extremity
4
Excitation method
PMG(with e-AVR)
power factorCOSφ0.8(lag)
Insulation class
H
motor
engine manufacturer
EPIOR
Engine Model
XD8V171ZL
Cylinder structure type
8-cylinder 90° V-type,
water-cooled four-stroke, turbocharged, intercooled
Bore x Strokemm171×210
total exhaust volumeL38.58
compression ratio
15.5:1
ratingKW725840
Engine cooling water volumeL120
Lubrication method
Pressure Splash Composite
Lubricant type
Grade CF-4 or better, SAE 15W-40
Lubricant capacityL(Height) 162～(Low) 123
activation methodV24V electric start
Starter motor capacityV-KW24/11
Charging generator capacityV-A28/95
Battery capacity x numberV-Ah12/200×2
Engine Fuel Consumption Rateg/KW.h186195
Machine  Group
Fuel type
Diesel fuel: 0#(summer) - 10#(winter) - 35#(cold)
Monitor Model
DSE7320
Noise level (1m)dB(A)70
Unit Fuel Tank CapacityL1500
Air filter inlet flowm³/S0.931.08
exhaust temperature℃≤450
Muffler exhaust flowm³/S2.623.03
Overall dimensionsmm20 standard containers 6058×2438×2591
net weightkg12600

XDE1000C

Model No.XDE1000C
rated frequencyHz5060
Main powerkVA9101000
KW730800
reserve powerkVA10001100
KW800880
rated voltageV400/230416/240
rated currentA13141388
Rated speedr/min15001800
alternators
Generator manufacturers
EPIOR
Generator Model
XFS910
extremity
4
Excitation method
PMG(带e-AVR)
power factorCOSφ0.8(lag)
Insulation class
H
motor
engine manufacturer
EPIOR
Engine Model
XD8V171ZL
Cylinder structure type
8-cylinder 90° V-type,
water-cooled four-stroke, turbocharged, intercooled
Bore x Strokemm171×210
total exhaust volumeL38.58
compression ratio
15.5:1
ratingKW9001012
Engine cooling water volumeL120
Lubrication method
Pressure Splash Composite
Lubricant type
Grade CF-4 or better, SAE 15W-40
Lubricant capacityL(高)162～(低)123
activation methodV24V electric start
Starter motor capacityV-KW24/11
Charging generator capacityV-A28/95
Battery capacity x numberV-Ah12/200×2
Engine Fuel Consumption Rateg/KW.h186195
Mechanisms
Fuel type
Diesel fuel: 0#(summer) - 10#(winter) - 35#(cold)
Monitor Model
DSE7320
Noise level (1m)dB(A)70
Unit Fuel Tank CapacityL1500
Air filter inlet flowm³/S1.161.30
exhaust temperature℃≤450
Muffler exhaust flowm³/S3.253.65
Overall dimensionsmm20 standard containers 6058×2438×2591
net weightkg12800

XDE1200C

Model No.XDE1200C
rated frequencyHz5060
Main powerkVA10001150
KW800920
reserve powerkVA11001250
KW8801000
rated voltageV400/230416/240
rated currentA14431596
Rated speedr/min15001800
alternators
Generator manufacturers
EPIOR
Generator Model
XFS1000
extremity
4
Excitation method
PMG(带e-AVR)
power factorCOSφ0.8(lag)
Insulation class
H
motor
engine manufacturer
EPIOR
Engine Model
XD8V171ZL
Cylinder structure type
8-cylinder 90° V-type,
water-cooled four-stroke, turbocharged, intercooled
Bore x Strokemm171×210
total exhaust volumeL38.58
compression ratio
15.5:1
ratingKW9001012
Engine cooling water volumeL120
Lubrication method
Pressure Splash Composite
Lubricant type
Grade CF-4 or better, SAE15W-40
Lubricant capacityL(高)162～(低)123
activation methodV24V electric start
Starter motor capacityV-KW24/11
Charging generator capacityV-A28/95
Battery capacity x numberV-Ah12/200×2
Engine Fuel Consumption Rateg/KW.h186195
flight crew (on a plane)
Fuel type
Diesel fuel: 0#(summer)-10#(winter)-35#(cold)
Monitor Model
DSE7320
Noise level (1m)dB(A)70
Unit Fuel Tank CapacityL1500
Air filter inlet flow m³/S1.161.30
exhaust temperature℃≤450
Muffler exhaust flow m³/S3.253.65
Overall dimensionsmm20 standard containers 6058×2438×2591
net weightkg13000

XDE1300C

Model No.XDE1300C
rated frequencyHz5060
Main powerkVA11251300
KW9001040
reserve powerkVA12501440
KW10001150
rated voltageV400/230416/240
rated currentA16241804
Rated speedr/min15001800
alternators
Generator manufacturers
EPIOR
Generator Model
XFS1130
extremity
4
Excitation method
PMG(带e-AVR)
power factorCOSφ0.8(lag)
Insulation class
H
motor
engine manufacturer
EPIOR
Engine Model
XD8V171ZLCR
Cylinder structure type
8-cylinder 90° V-type,
water-cooled four-stroke, turbocharged, intercooled
Bore x Strokemm171×210
total exhaust volumeL38.58
compression ratio
15.5:1
ratingKW9851142
Engine cooling water volumeL120
Lubrication method
Pressure Splash Composite
Lubricant type
Grade CF-4 or better, SAE 15W-40
Lubricant capacityL(高)162～(低)123
activation methodV24V electric start
Starter motor capacityV-KW24/11
Charging generator capacityV-A28/95
Battery capacity x numberV-Ah12/200×2
Engine Fuel Consumption Rateg/KW.h186195
flight crew (on a plane)
Fuel type
Diesel fuel: 0#(summer)-10#(winter)-35#(cold)
Monitor Model
DSE7320
Noise level (1m)dB(A)70
Unit Fuel Tank CapacityL1500
Air filter inlet flow m³/S1.271.47
exhaust temperature℃≤450
Muffler exhaust flow m³/S3.564.12
Overall dimensionsmm20 British Standard Container 6058×2438×2591
net weightkg13200

XDE1500C

Model No.XDE1500C
rated frequencyHz5060
Main powerkVA13001500
KW10401200
reserve powerkVA14301650
KW11451320
rated voltageV400/230416/240
rated currentA18762082
Rated speedr/min15001800
alternators
Generator manufacturers
EPIOR
Generator Model
XFS1320
extremity
4
Excitation method
PMG(带e-AVR)
power factorCOSφ0.8(lag)
Insulation class
H
motor
engine manufacturer
EPIOR
Engine Model
XD12V171ZL
Cylinder structure type
12-cylinder 90° V-type,
water-cooled four-stroke, turbocharged, intercooled
Bore x Strokemm171×210
total exhaust volumeL57.87
compression ratio
15.5:1
ratingKW11701356
Engine cooling water volumeL150
Lubrication method
Pressure Splash Composite
Lubricant type
Grade CF-4 or better, SAE 15W-40
Lubricant capacityL(高)236～(低)192
activation methodV24V electric start
Starter motor capacityV-KW24/11×2
Charging generator capacityV-A28/95
Battery capacity x numberV-Ah12/150×4
Engine Fuel Consumption Rateg/KW.h186195
Mechanisms
Fuel type
Diesel fuel: 0#(summer) - 10#(winter) - 35#(cold)
Monitor Model
DSE7320
Noise level (1m)dB(A)70
Unit Fuel Tank CapacityL1500
Air filter inlet flowm³/S1.511.75
exhaust temperature℃≤450
Muffler exhaust flowm³/S4.224.89
Overall dimensionsmm20 British Standard Container 6058×2438×2591
net weightkg13900

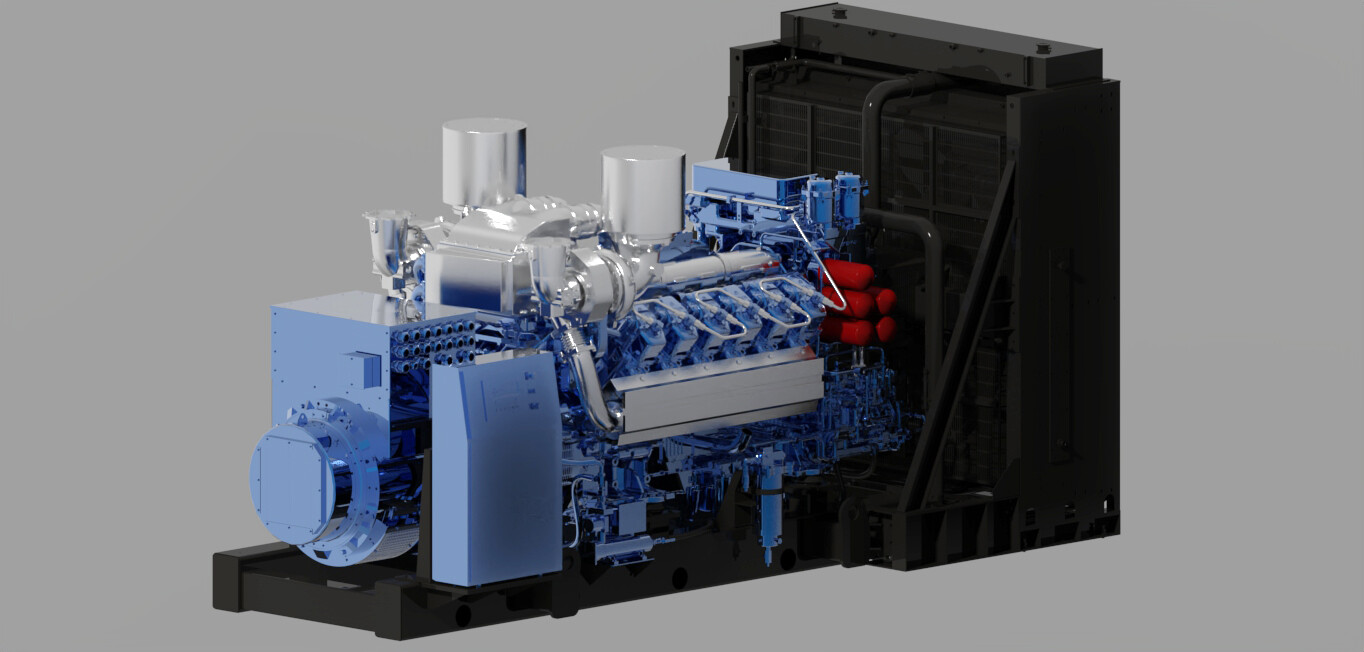

XDE1800C

Model No.XDE1800C
rated frequencyHz5060
Main powerkVA16001750
KW12801400
reserve powerkVA17601925
KW14001540
rated voltageV400/230416/240
rated currentA23092429
Rated speedr/min15001800
alternators
Generator manufacturers
EPIOR
Generator Model
XFS1650
extremity
4
Excitation method
PMG(带e-AVR)
power factorCOSφ0.8(lag)
Insulation class
H
motor
engine manufacturer
EPIOR
Engine Model
XD12V171ZL
Cylinder structure type
12-cylinder 90° V-type,
water-cooled four-stroke, turbocharged, intercooled
Bore x Strokemm171×210
total exhaust volumeL57.87
compression ratio
15.5:1
ratingKW14251525
Engine cooling water volumeL150
Lubrication method
Pressure Splash Composite
Lubricant type
Grade CF-4 or better, SAE 15W-40
Lubricant capacityL(高)236～(低)192
activation methodV24V electric start
Starter motor capacityV-KW24/11×2
Charging generator capacityV-A28/95
Battery capacity x numberV-Ah12/150×4
Engine Fuel Consumption Rateg/KW.h186195
Mechanisms
Fuel type
Diesel fuel: 0#(summer) - 10#(winter) - 35#(cold)
Monitor Model
DSE7320
Noise level (1m)dB(A)70
Unit Fuel Tank CapacityL1500
Air filter inlet flowm³/S1.841.97
exhaust temperature℃≤450
Muffler exhaust flowm³/S5.145.50
Overall dimensionsmm20 standard containers 6058×2438×2591
net weightkg14500

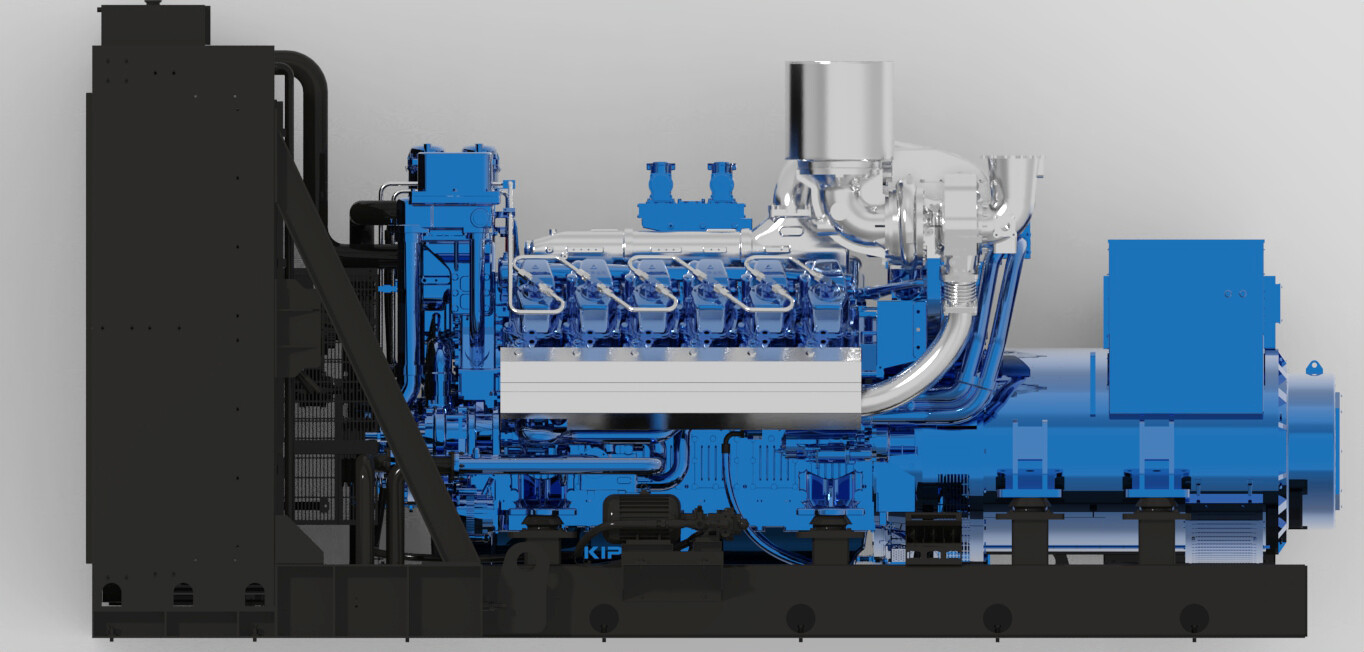

XDE2000C

Model No.XDE2000C
rated frequencyHz5060
Main powerkVA18002000
KW14401600
reserve powerkVA20002200
KW16001760
rated voltageV400/230416/240
rated currentA25982776
Rated speedr/min15001800
alternators
Generator manufacturers
EPIOR
Generator Model
XFS1800
extremity
4
Excitation method
PMG(带e-AVR)
power factorCOSφ0.8(lag)
Insulation class
H
motor
engine manufacturer
EPIOR
Engine Model
XD12V171ZLCR
Cylinder structure type
12-cylinder 90° V-type,
water-cooled four-stroke, turbocharged, intercooled
Bore x Strokemm171×210
total exhaust volumeL57.87
compression ratio
15.5:1
ratingKW15801740
Engine cooling water volumeL150
Lubrication method
Pressure Splash Composite
Lubricant type
Grade CF-4 or better, SAE15W-40
Lubricant capacityL(高)236～(低)192
activation methodV24V electric start
Starter motor capacityV-KW24/11×2
Charging generator capacityV-A28/95
Battery capacity x numberV-Ah12/150×4
Engine Fuel Consumption Rateg/KW.h186195
flight crew (on a plane)
Fuel type
Diesel fuel: 0#(summer)-10#(winter)-35#(cold)
Monitor Model
DSE7320
Noise level (1m)dB(A)70
Unit Fuel Tank CapacityL1500
Air filter inlet flow m³/S2.042.24
exhaust temperature℃≤450
Muffler exhaust flow m³/S5.706.28
Overall dimensionsmm20 standard containers 6058×2438×2591
net weightkg14800

XDE2350C

Model No.XDE2350C
rated frequencyHz5060
Main powerkVA20002300
KW16001840
reserve powerkVA22002530
KW17602020
rated voltageV400/230416/240
rated currentA28873192
Rated speedr/min15001800
alternators
Generator manufacturers
EPIOR
Generator Model
XFS2150
extremity
4
Excitation method
PMG(带e-AVR)
power factorCOSφ0.8(lag)
Insulation class
H
motor
engine manufacturer
EPIOR
Engine Model
XD16V171ZL
Cylinder structure type
16-cylinder 90° V-type,
water-cooled four-stroke, turbocharged, intercooled
Bore x Strokemm171×210
total exhaust volumeL77.16
compression ratio
15.5:1
ratingKW18002025
Engine cooling water volumeL180
Lubrication method
Pressure Splash Composite
Lubricant type
Grade CF-4 or better, SAE 15W-40
Lubricant capacityL(高)288～(低)209
activation methodV24V electric start
Starter motor capacityV-KW24/11×2
Charging generator capacityV-A28/95
Battery capacity x numberV-Ah12/150×4
Engine Fuel Consumption Rateg/KW.h186195
flight crew (on a plane)
Fuel type
Diesel fuel: 0#(summer)-10#(winter)-35#(cold)
Monitor Model
DSE7320
Noise level (1m)dB(A)72-75
Unit Fuel Tank CapacityL1500
Air filter inlet flow m³/S2.322.61
exhaust temperature℃≤450
Muffler exhaust flow m³/S6.507.31
Overall dimensionsmm40 standard containers 12192×2438×2896
net weightkg13200

XDE2550C

Model No.XDE2550C
rated frequencyHz5060
Main powerkVA22502600
KW18002080
reserve powerkVA25002860
KW20002300
rated voltageV400/230416/240
rated currentA32483609
Rated speedr/min15001800
alternators
Generator manufacturers
EPIOR
Generator Model
DFS2250
extremity
4
Excitation method
PMG(带e-AVR)
power factorCOSφ0.8(lag)
Insulation class
H
motor
engine manufacturer
EPIOR
Engine Model
XD16V171ZLCR
Cylinder structure type
16-cylinder 90° V-type,
water-cooled four-stroke, turbocharged, intercooled
Bore x Strokemm171×210
total exhaust volumeL77.16
compression ratio
15.5:1
ratingKW19702285
Engine cooling water volumeL180
Lubrication method
Pressure Splash Composite
Lubricant type
Grade CF-4 or better, SAE 15W-40
Lubricant capacityL(高)288～(低)209
activation methodV24V electric start
Starter motor capacityV-KW24/11×2
Charging generator capacityV-A28/95
Battery capacity x numberV-Ah12/150×4
Engine Fuel Consumption Rateg/KW.h186195
Mechanisms
Fuel type
Diesel fuel: 0#(summer) - 10#(winter) - 35#(cold)
Monitor Model
DSE7320
Noise level (1m)dB(A)72-75
Unit Fuel Tank CapacityL3000
Air filter inlet flowm³/S2.542.95
exhaust temperature℃≤450
Muffler exhaust flowm³/S7.118.25
Overall dimensionsmmStandard 40-inch container 12192 x 2438 x 2896
net weightkg26400

XDE2900C

Model No.XDE2900C
rated frequencyHz5060
Main powerkVA25002900
KW20002320
reserve powerkVA27503200
KW22002550
rated voltageV400/230416/240
rated currentA36094025
Rated speedr/min15001800
alternators
Generator manufacturers
EPIOR
Generator Model
DFS2500
extremity
4
Excitation method
PMG(带e-AVR)
power factorCOSφ0.8(lag)
Insulation class
H
motor
engine manufacturer
EPIOR
Engine Model
XD20V171ZL
Cylinder structure type
20-cylinder 90° V-type,
water-cooled four-stroke, turbocharged, intercooled
Bore x Strokemm171×210
total exhaust volumeL96.45
compression ratio
15.5:1
ratingKW22052495
Engine cooling water volumeL210
Lubrication method
Pressure Splash Composite
Lubricant type
Grade CF-4 or better, SAE 15W-40
Lubricant capacityL(高)340～(低)245
activation methodV24V electric start
Starter motor capacityV-KW24/11×2
Charging generator capacityV-A28/95
Battery capacity x numberV-Ah12/200×6
Engine Fuel Consumption Rateg/KW.h186195
Mechanisms
Fuel type
Diesel fuel: 0#(summer) - 10#(winter) - 35#(cold)
Monitor Model
DSE7320
Noise level (1m)dB(A)75-78
Unit Fuel Tank CapacityL3000
Air filter inlet flowm³/S2.843.22
exhaust temperature℃≤450
Muffler exhaust flowm³/S7.969.00
Overall dimensionsmm40 standard containers 12192×2438×2896
net weightkg30600

XDE3100C

XDE3500C

Other Product Recommendations
